Machine Specifications

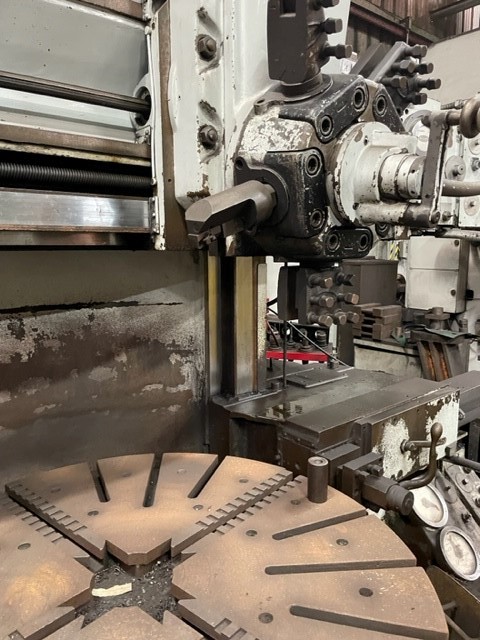

Heavy-duty Bullard Dynatrol vertical turret lathe/vertical boring mill equipped with a 46" four-jaw table, turret head and side head. Machine is under-power and running. Serial number indicates an approximate build date around 1970.
Video Available Upon Request
Specifications
Manufacturer: The Bullard Company
Model: 46" Dynatrol
Machine Type: Vertical Turret Lathe / Vertical Boring Mill
Serial Number: 32198
Approximate Year: 1970
Table Diameter: 46"
Table Configuration: Four-jaw
Maximum Swing: 58"
Swing with Side Head Above Table: 49"
Height Under Cross Rail: 40"
Cross-Rail Vertical Adjustment: 30"
Maximum Height Under Turret Face: 50-3/8"
Turret Vertical Travel: 26"
Turret Horizontal Travel: 65"
Side-Head Vertical Travel: 38-3/4"
Side-Head Horizontal Travel: 23-3/4"
Table Speeds: 20 speeds, approximately 5.1–187 RPM
Feeds: 16 mechanically geared feeds, approximately 0.0006–0.125 IPR
Main Drive Motor: Approximately 50 HP AC
Cross-Rail Elevation Motor: Approximately 5 HP
Approximate Overall Dimensions: 144" L-R × 108" F-B × 144" H
Approximate Weight: 48,000 lbs.
Equipped With
46" four-jaw table
Vertical turret head
Side head
Powered cross-rail elevation
Mechanically geared table speeds and feeds
Operator controls
Available operational video
Condition
Under-power and running at the time of inspection.
