Machine Specifications

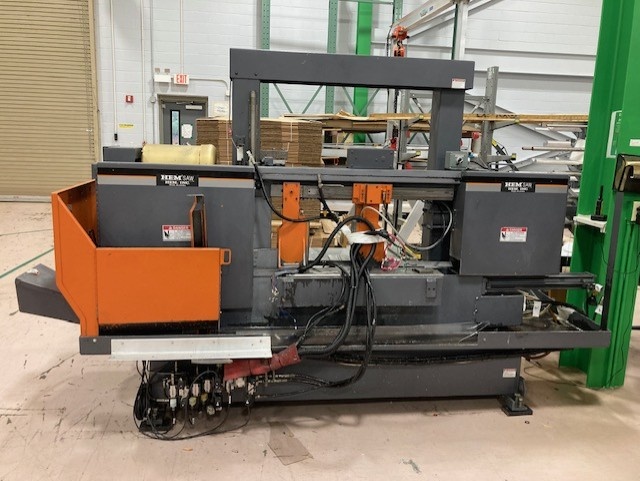

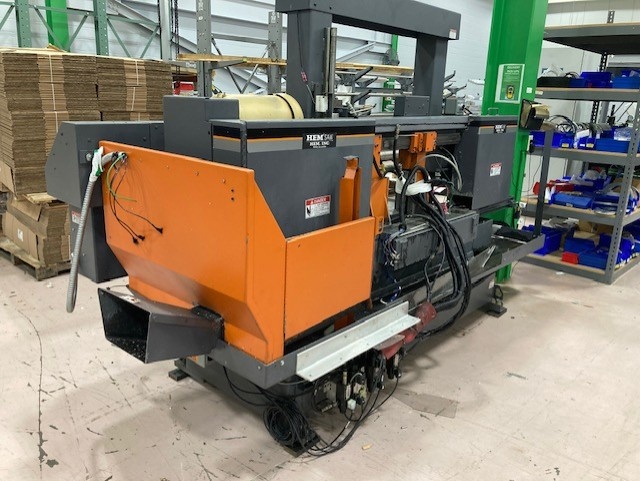

2013 HEM DC-1420HIA-C Automatic Dual Column Horizontal Band Saw, Under Power, Includes Roller Table, New Idler Pulley Installed in 2025
Manufacturer: HEM, Inc.
Model: DC-1420HIA-C
Year: 2013
Serial Number: 1172013
Type: Automatic Dual Column Horizontal Band Saw
Specifications:
Capacity: 14" x 20" (Approximate)
Blade Size: 1-1/4" x 17'-8" x .042"

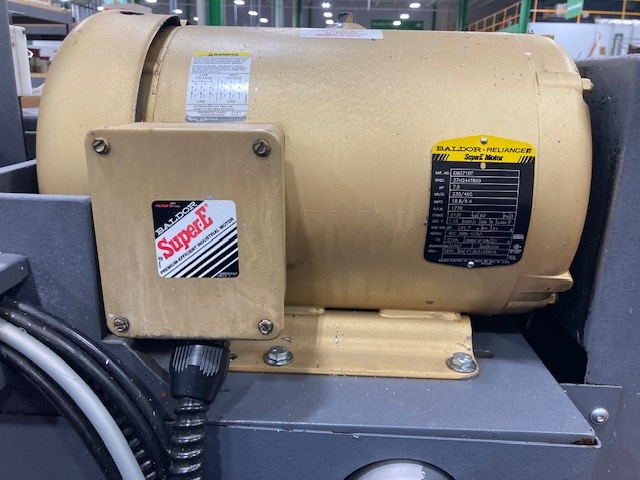

Main Drive Motor: 7.5 HP
Electrical: 440 Volt
Amperage: 19.5 Amps
Air Requirement: Yes
Equipped With
Automatic Cutting Cycle
Dual Column Saw Head Design

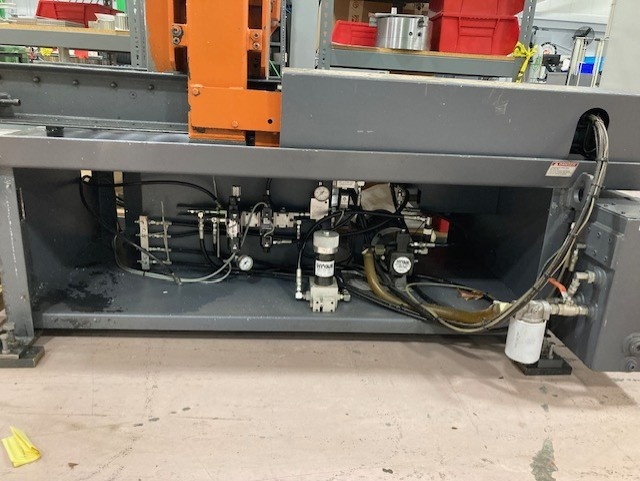

Hydraulic Material Feed System
Automatic Work Clamping
Coolant System

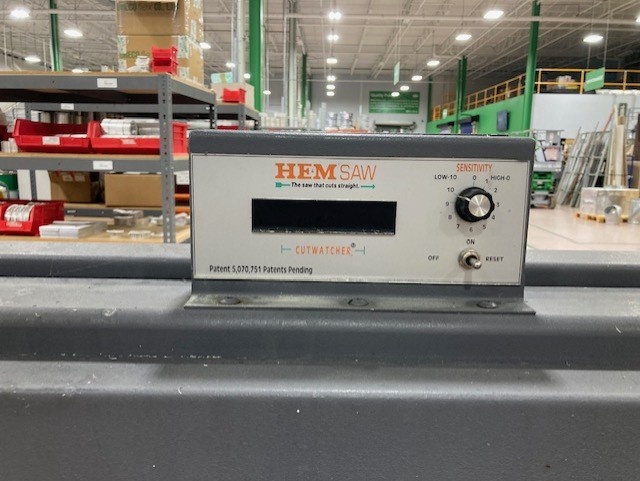

Operator Control Station
Powered Material Handling System

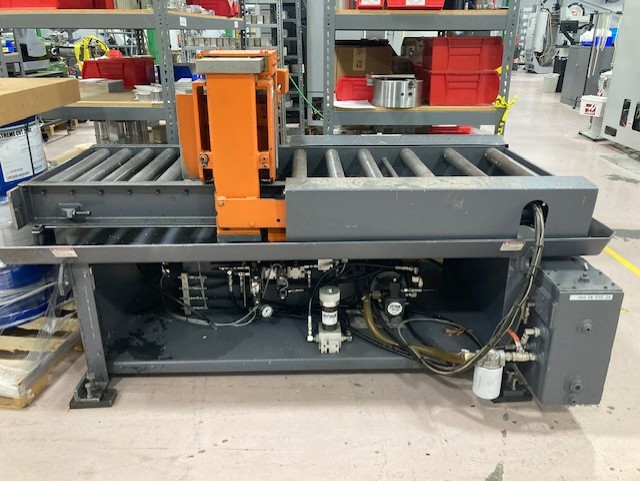

Roller Table
Chip Removal Area
Maintenance

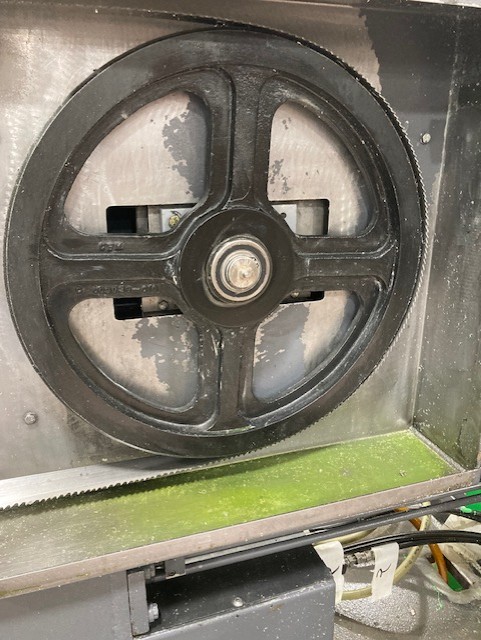

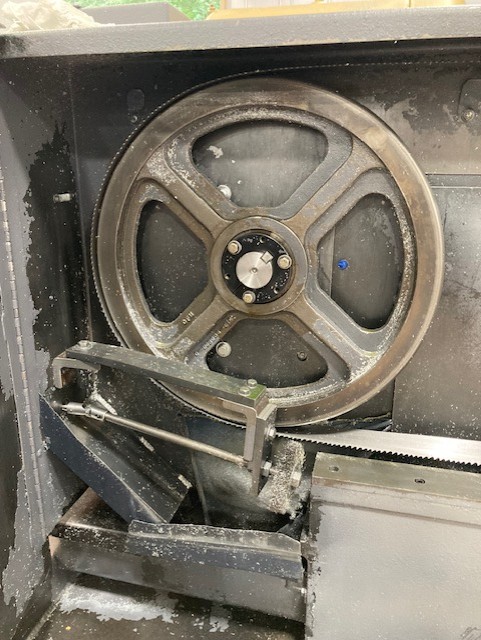

New Idler Pulley Installed (2025)
Condition:
Seller states the saw runs properly.
Description:
The HEM DC-1420HIA-C is a heavy-duty automatic dual column horizontal band saw designed for production cutting applications. The dual-column design provides superior blade stability and cutting accuracy while the automatic feed and clamping system improve productivity and repeatability. Equipped with a roller table for efficient material handling, this saw is well suited for cutting structural steel, tubing, pipe, and solid bar stock in fabrication and manufacturing environments.
Included: Roller Table
