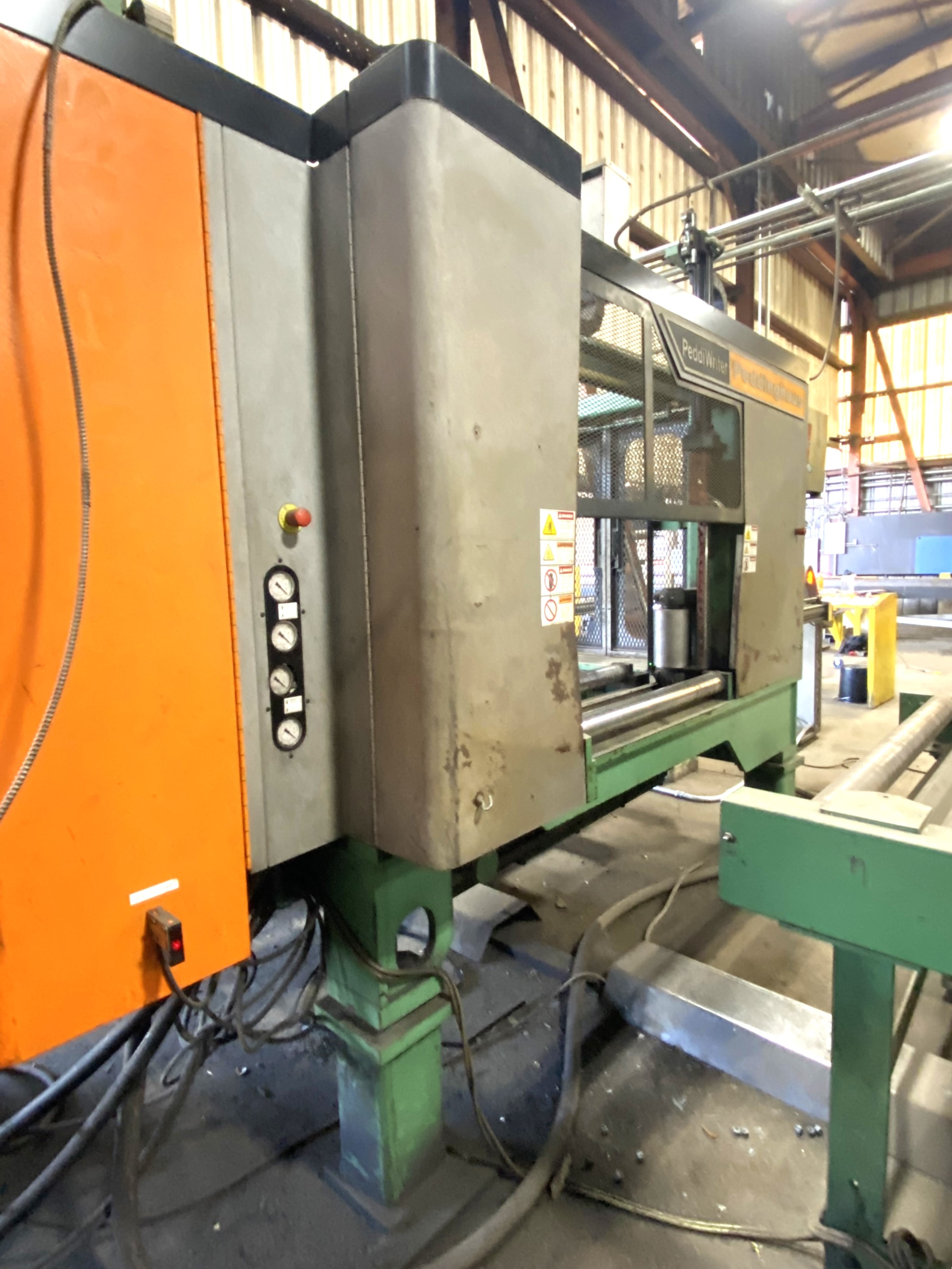

Manufacturer: Peddinghaus
Model: PW-1250
Machine Name: Peddi-Writer
Designation: Plasma Layout Machine
Serial Number: B1802
Date of Manufacture: December 2018
Voltage: 460/380
Phase: 3
Frequency: 60/50 Hz
kVA: 22.60
SCCR: 50 kA
Full Load Current: 28.4 / 34.4A
Largest Motor FLA: 11A
Material Capacity
• Maximum Material Size: 48" Wide x 24" High
• Minimum Material Length: 10 ft.
• Maximum Profile Weight: 43,800 lbs.
Features Include:

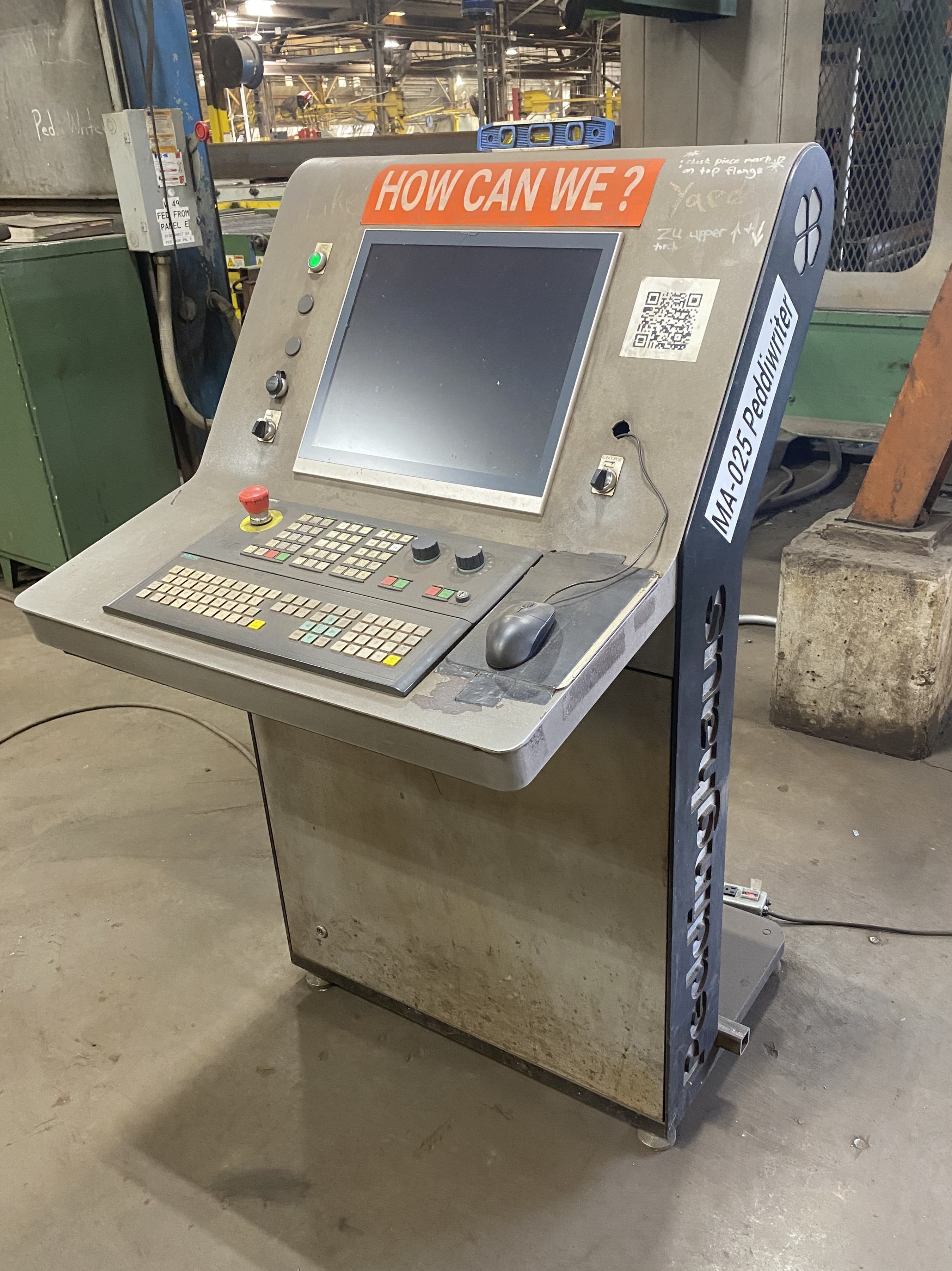

• Siemens CNC Control System
• Peddinghaus Raptor Software

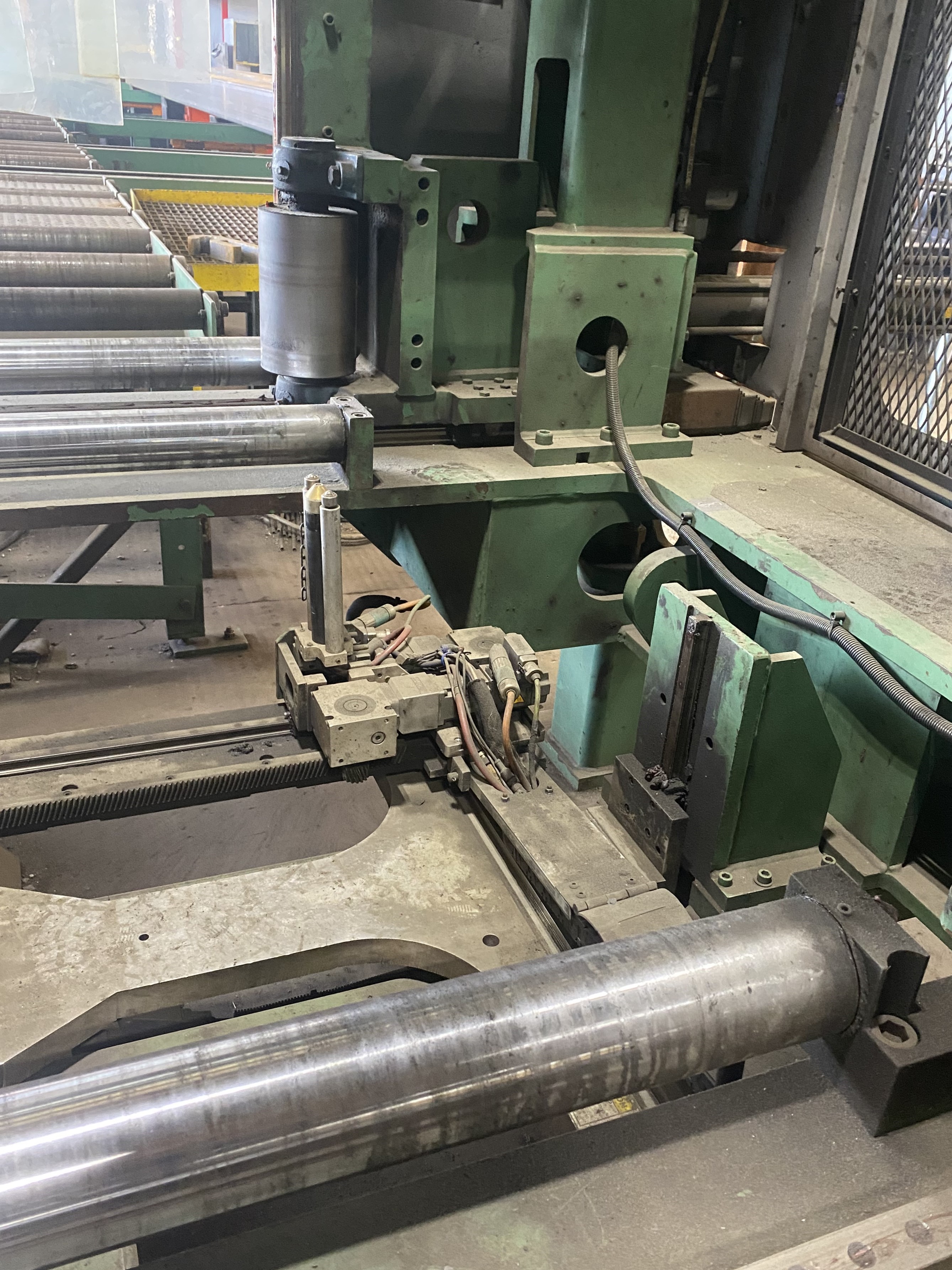

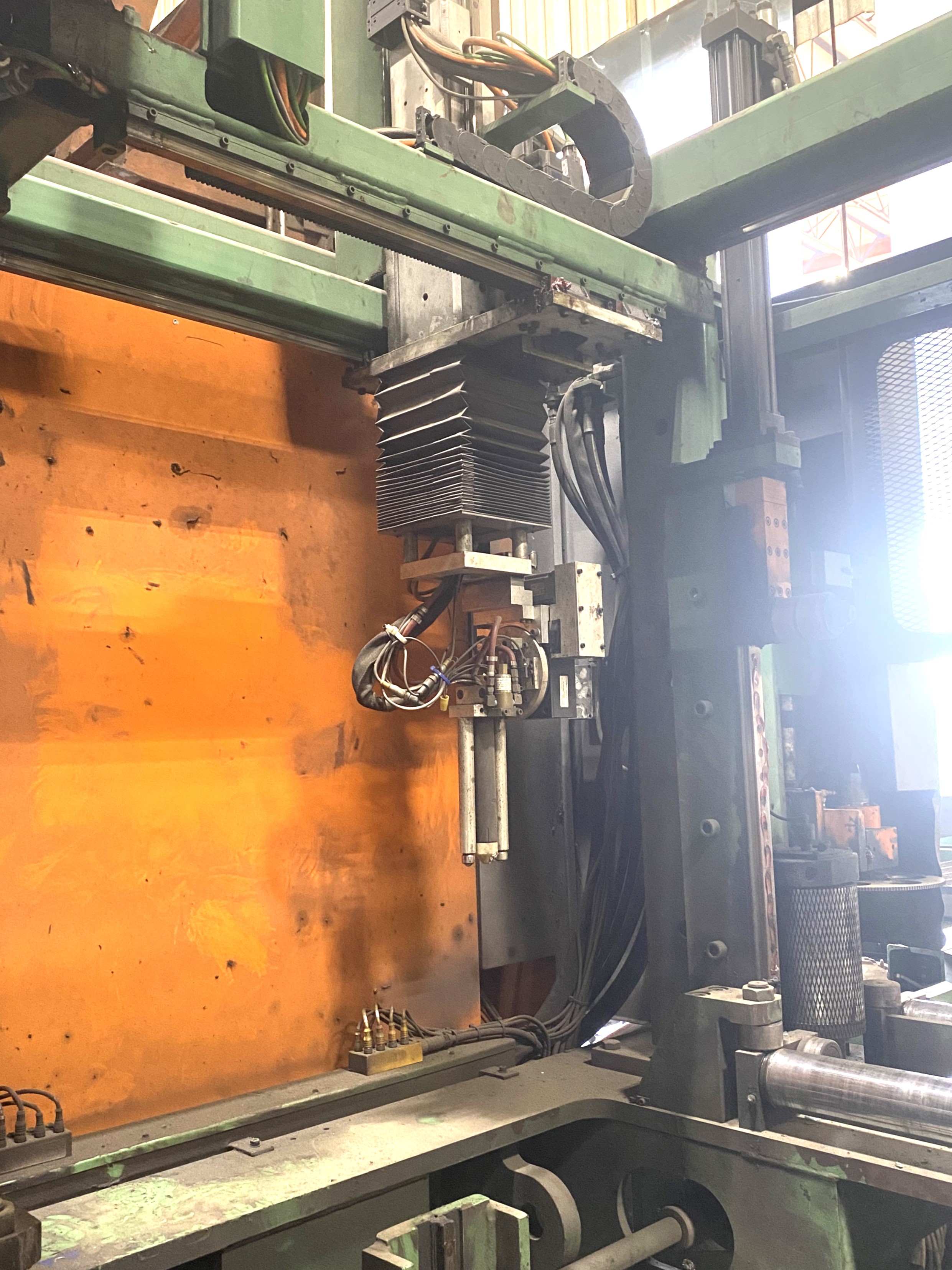

• (2) Hypertherm ArcWriter Marking Torches
• 4-Surface Automated Marking Capability
• Online Troubleshooting Capability Through Peddinghaus
• Direct File Import
• Roller Feed Measurement System
• Automated Structural Steel Layout Processing
Processes:
• Structural Beams
• Channel
• Square / Rectangular Tubing
• Angle
• Flat Stock
Additional Notes:
Machine manuals and documentation available.
