Machine Specifications
1967 Giddings & Lewis 70-G5-T 5" CNC Horizontal Boring Mill
Professionally remanufactured and CNC-retrofitted by Dayton Machine Tool Company in 1994. Heavy-duty table-type horizontal boring mill equipped with a 5" spindle, FANUC 15M five-axis CNC control, 20-station automatic tool changer, powered rotary table, powered tailstock and vertical milling-head attachment.
Specifications
Manufacturer: Giddings & Lewis
Model: 70-G5-T
Original Year: 1967
Remanufactured: 1994
Remanufacturer: Dayton Machine Tool Company
Remanufacture Job Number: 1615
Serial Number: 410-21-67
Machine Type: CNC Table-Type Horizontal Boring Mill
CNC Control: FANUC 15M
Controlled Axes: Five
Spindle Diameter: 5"
Spindle Taper: No. 50
Spindle-Speed Range: 0–2,000 RPM
Spindle Travel, Z-Axis: 36"
Vertical Headstock Travel, Y-Axis: 72"
Table Cross Travel, X-Axis: 84"
Longitudinal/Saddle Travel, W-Axis: 96"
Rotary Table: Programmable B-axis
Table Size: 60" × 96" per original proposal
Powered Rotary-Table Size: 60" × 72" per sales documentation
Automatic Tool Changer: 20 stations
Guideways: Hardened ways
Power Drawbar: Yes
Equipped With
FANUC 15M five-axis CNC control
20-station automatic tool changer
Programmable powered rotary table
Powered tailstock with positioning input
Vertical milling-head attachment
No. 50 spindle taper
Power drawbar
Hardened ways
Remote operator pendant
Miscellaneous toolholders and collets
Machine manuals
CNC-control manuals
Original remanufacture documentation

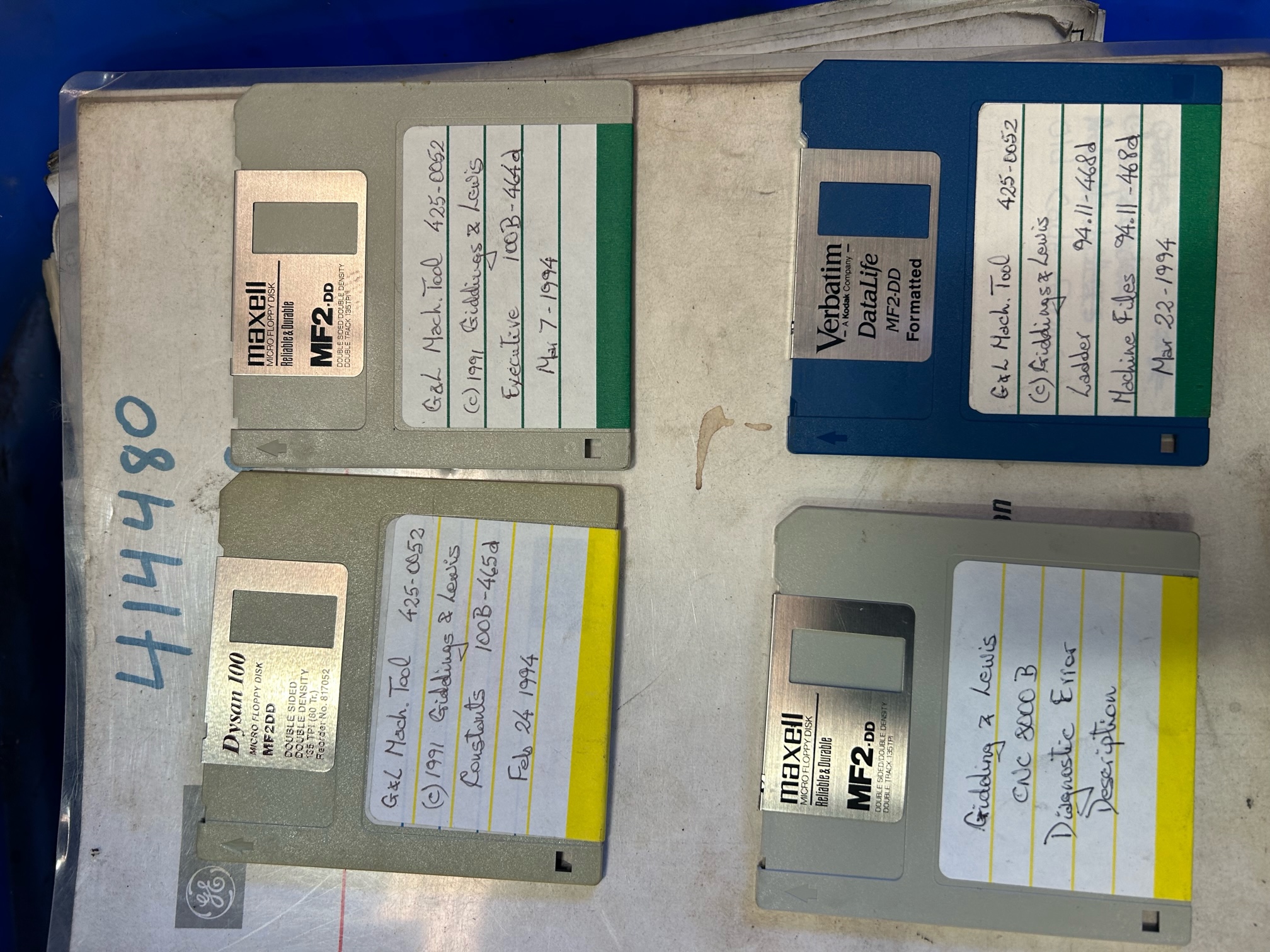

Original machine software and diagnostic disks
Approximate Overall Dimensions
Length: 23'
Width: 159"
Height: 159"
Machine Description

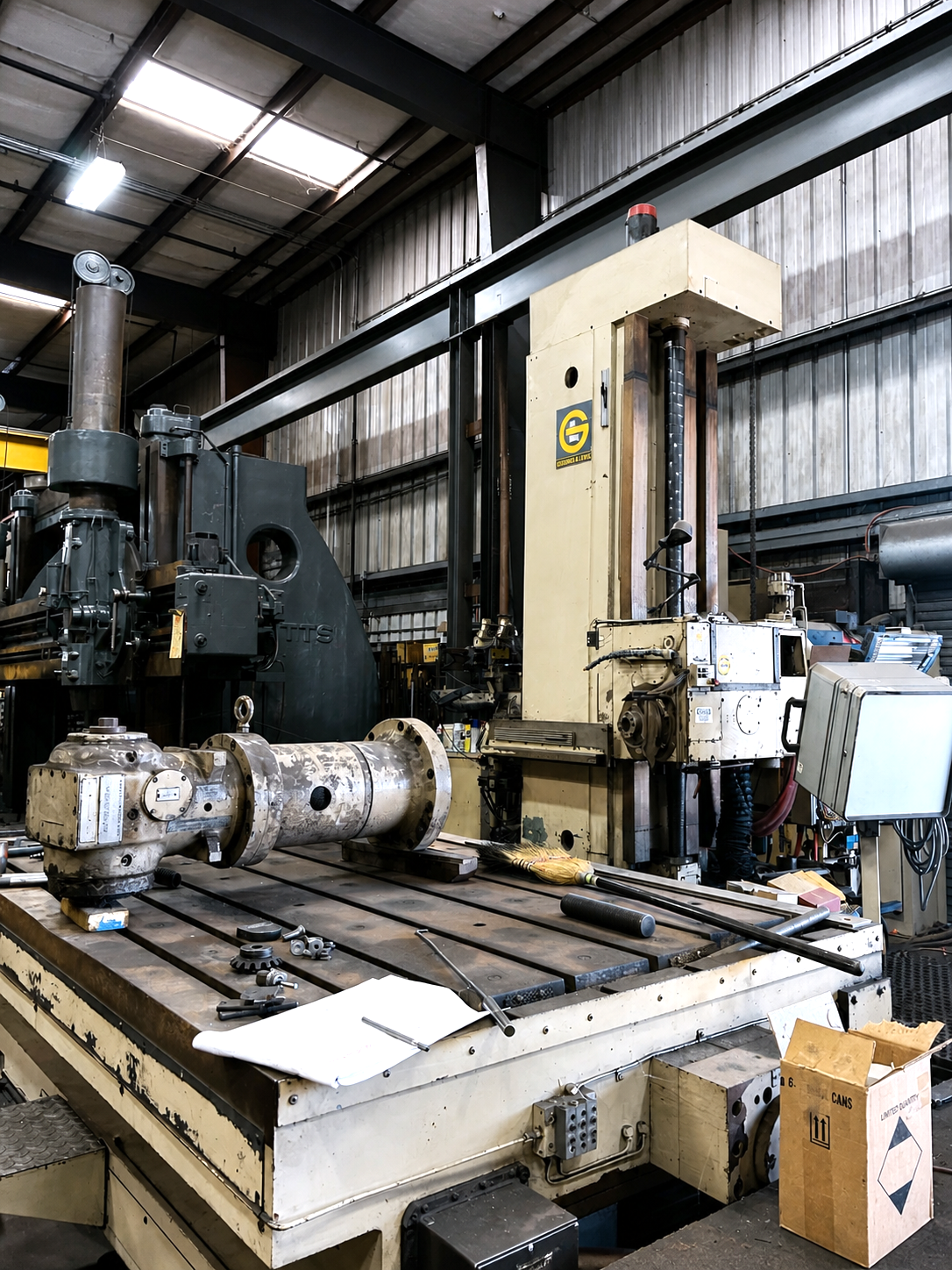

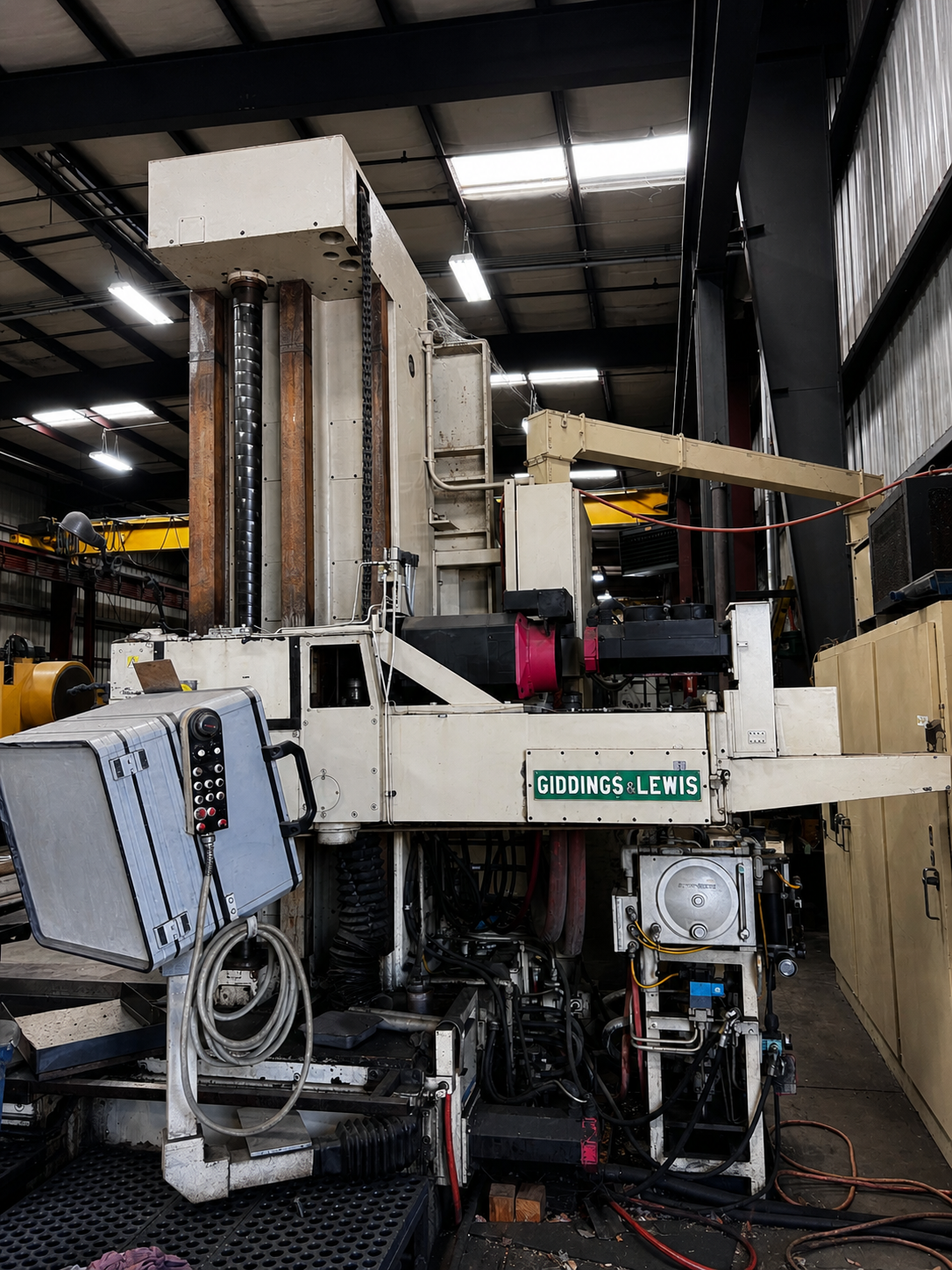

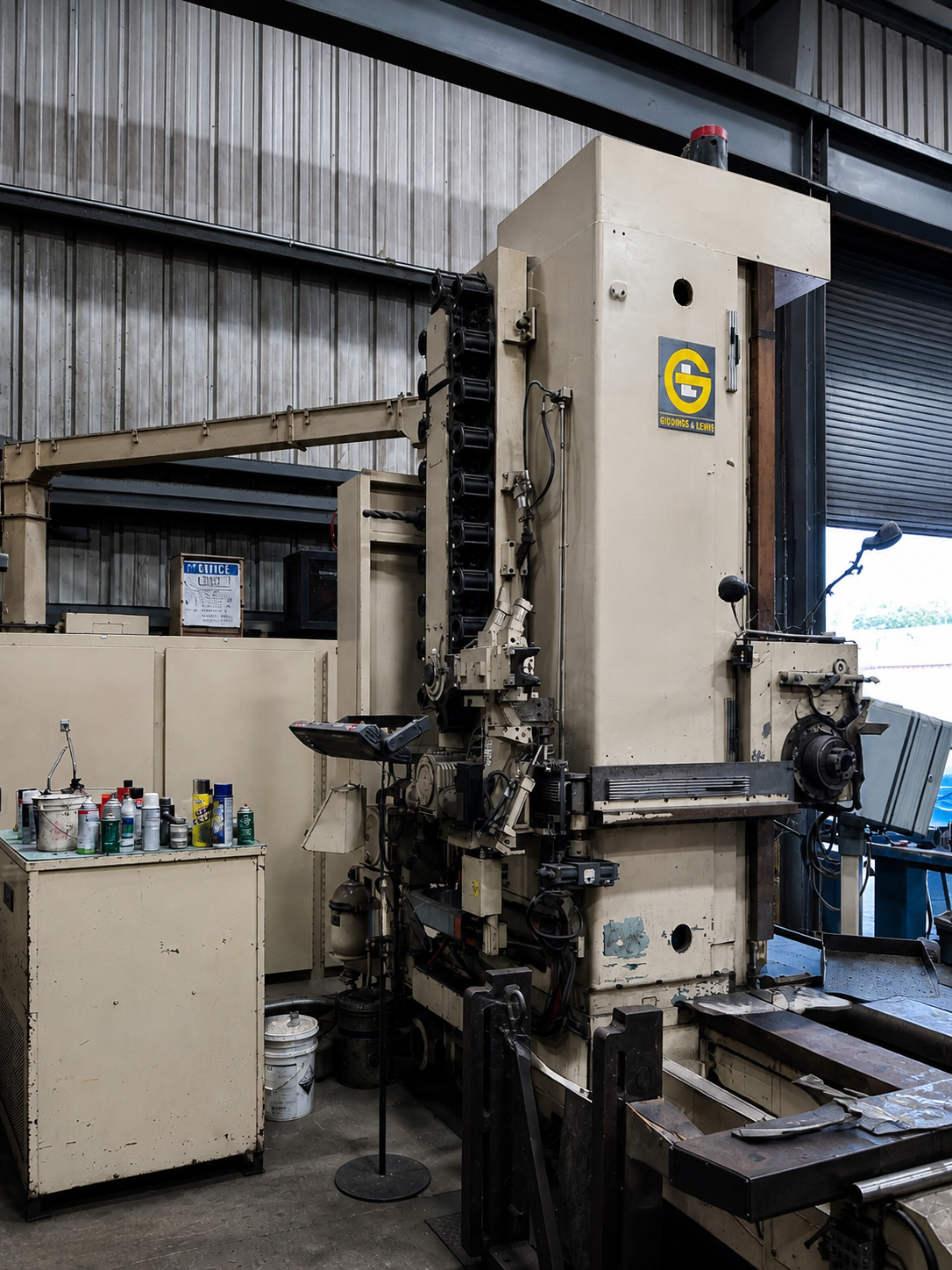

This Giddings & Lewis 70-G5-T is a heavy-duty five-axis CNC table-type horizontal boring mill originally manufactured in 1967 and professionally remanufactured by Dayton Machine Tool Company in 1994.
The machine features a 5" diameter spindle with No. 50 taper, spindle speeds through 2,000 RPM and a 20-station automatic tool changer. Its working travels include 84" of table cross travel, 72" of vertical headstock travel, 96" of longitudinal saddle travel and 36" of spindle travel.
A programmable powered rotary table provides the additional controlled rotary axis. The machine is also equipped with a powered tailstock, vertical milling-head attachment, power drawbar, hardened ways and miscellaneous tooling.
