TABLE WIDTH 19.7"
TABLE LENGTH 24.8"
TABLE LOAD CAPACITY 660 lb
X-AXIS TRAVEL 30"
Y-AXIS TRAVEL 20"
Z-AXIS TRAVEL 20"
B-AXIS (TILT) TRAVEL +120 DGREES / -25 DEGREES
C-AXIS (ROTATION) TRAVEL 360 DEGREES
SPINDLE SPEED 12,000 RPM
SPINDLE MOTOR 30 hp
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 40
Equipped With

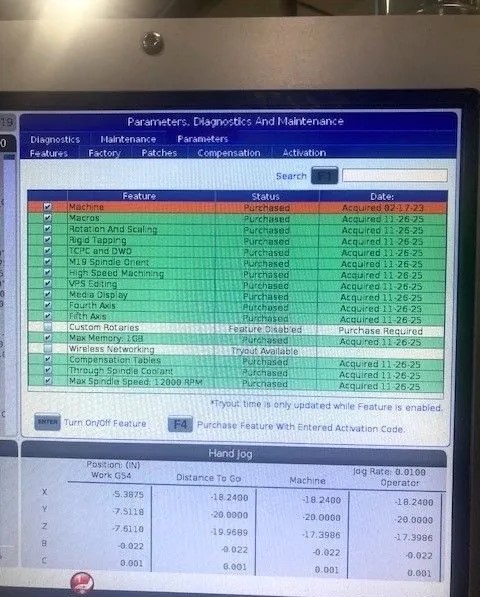

HAAS NEXTGEN CONTROL
4TH & 5TH AXIS DRIVE & WIRING

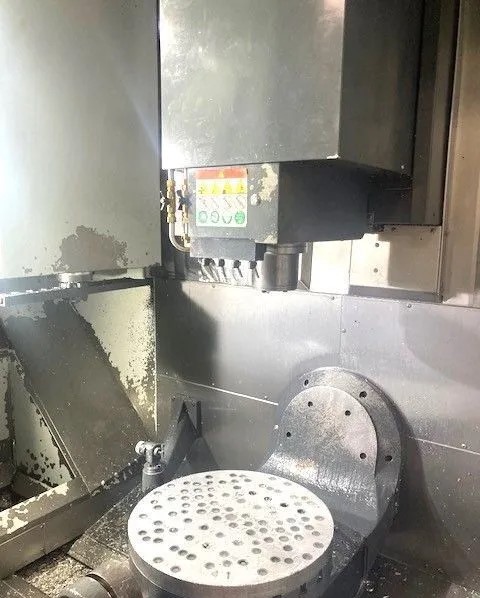

BUILT-IN 5-AXIS TABLE (TRUNNION/ROTARY TABLE)
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
SIDE-MOUNT TOOL CHANGER (40 ATC)

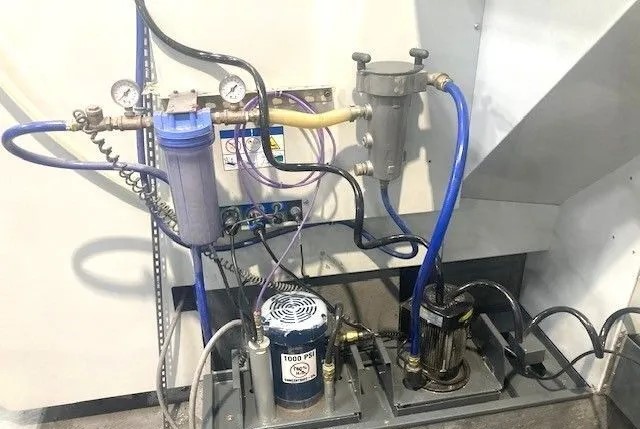

THROUGH-SPINDLE COOLANT (1,000 PSI)
PROGRAMMABLE COOLANT NOZZLE

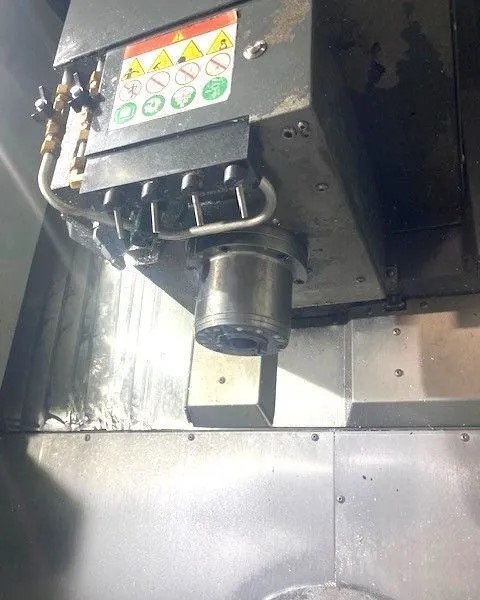

12,000 RPM INLINE GREASE-PACKED SPINDLE

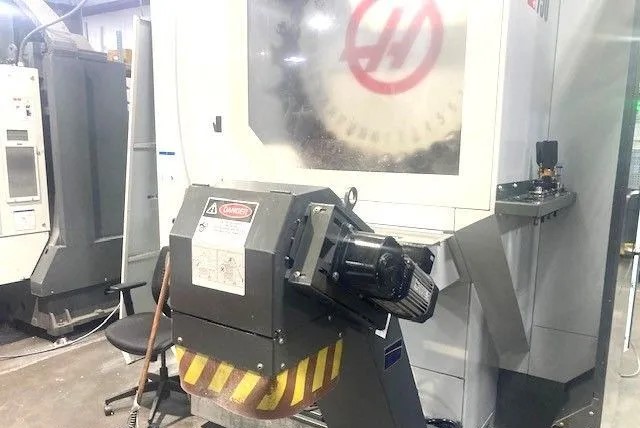

CHIP CONVEYOR (BELT-TYPE)
75 GALLON FLOOD COOLANT SYSTEM
COLOR REMOTE JOG HANDLE
DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL
HIGH-SPEED MACHINING
COORDINATE ROTATION & SCALING
VISUAL PROGRAMMING SYSTEM
SPINDLE ORIENTATION
EARLY POWER FAILURE DETECTION MODULE
SECOND HOME POSITION
RIGID TAPPING
MACROS
MEDIA DISPLAY
HAAS CONNECT
1GB MEMORY
ETHERNET
USB PORT
** ORIGINAL OWNER
** MACHINE CUT PRIMARILY ALUMINUM

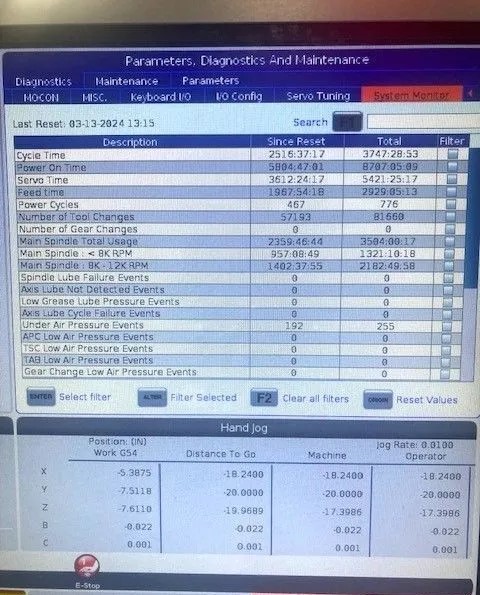

** AS OF DECEMBER, 2025, FEED CUTTING TIME: 3,500 HOURS
** FULL REPLACEMENT COST, AS EQUIPPED: $225,000
** MACHINE MANUFACTURED DATE: JUNE, 2018
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
