PALLET WIDTH 15.723"
PALLET LENGTH 15.723"
PALLET INDEXING FULL 4TH
NUMBER OF PALLETS 6
TABLE LENGTH 15.72"
TABLE WIDTH 15.72"
X-AXIS TRAVEL 25.157"
Y-AXIS TRAVEL 23.978"
Z-AXIS TRAVEL 26.73"
SPINDLE SPEED 20,000 RPM
SPINDLE TAPER HSK 63
MAX WORKPIECE WEIGHT 1,100 lb
TOOL POSITIONS (ATC) 120
RAPID TRAVERSE RATE 2,362 in/min.
Equipped With

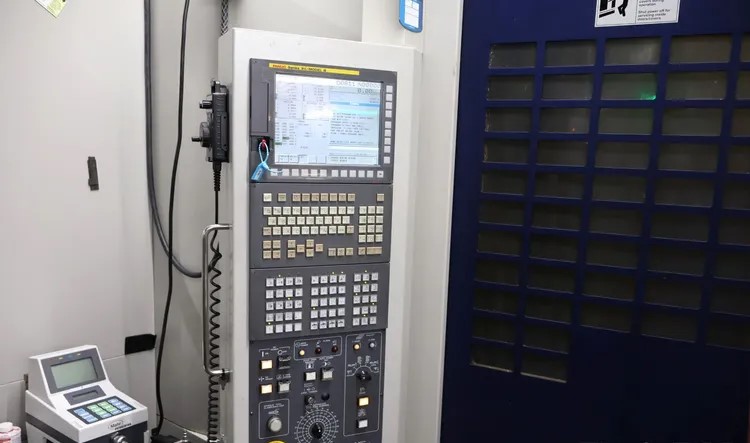

FANUC 31I-MODEL B

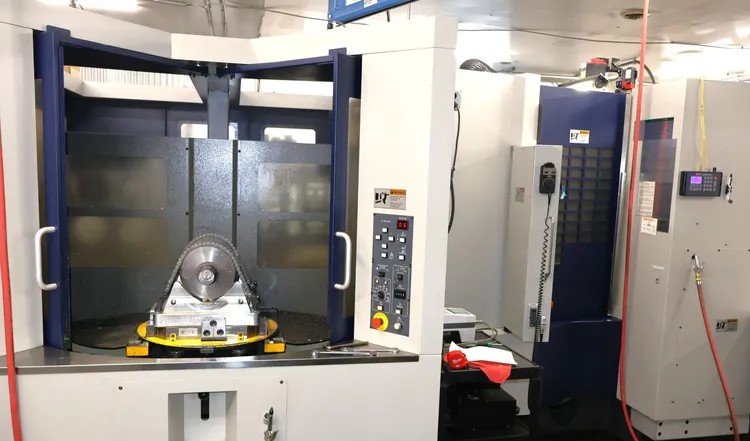

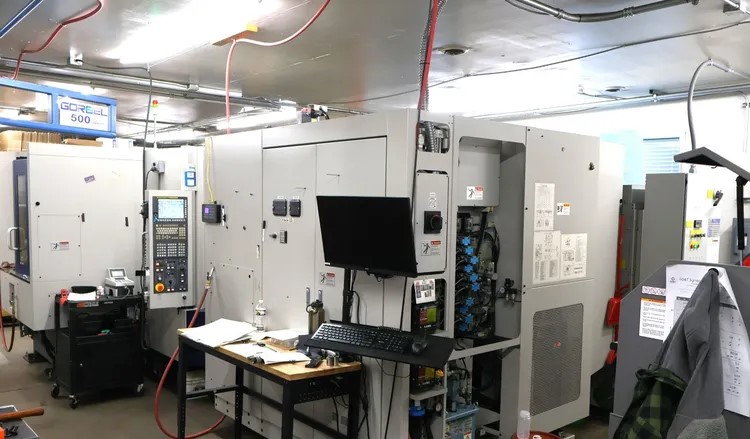

6-PALLET CAPACITY: (1) LOAD/UNLOAD STATION, (4) IN POOL, (1) IN MACHINE

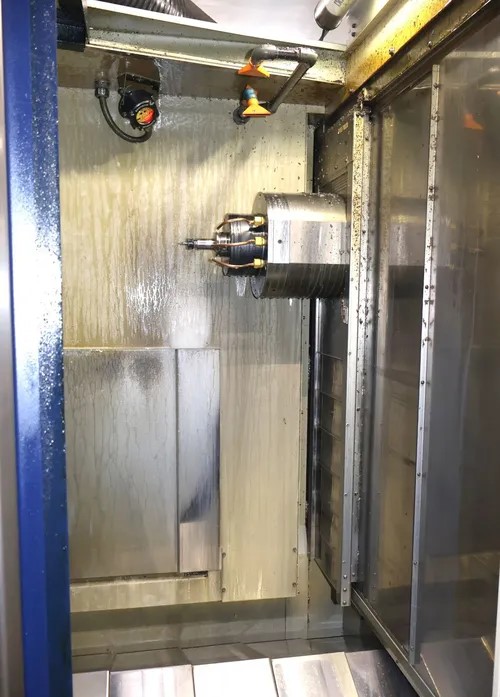

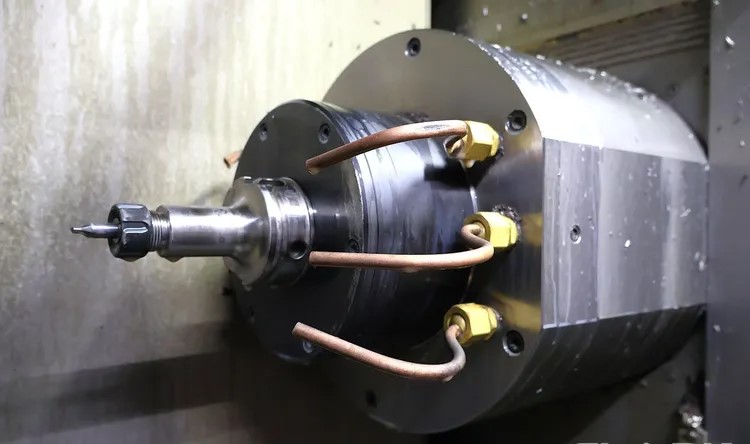

20,000 RPM HSK-63 SPINDLE

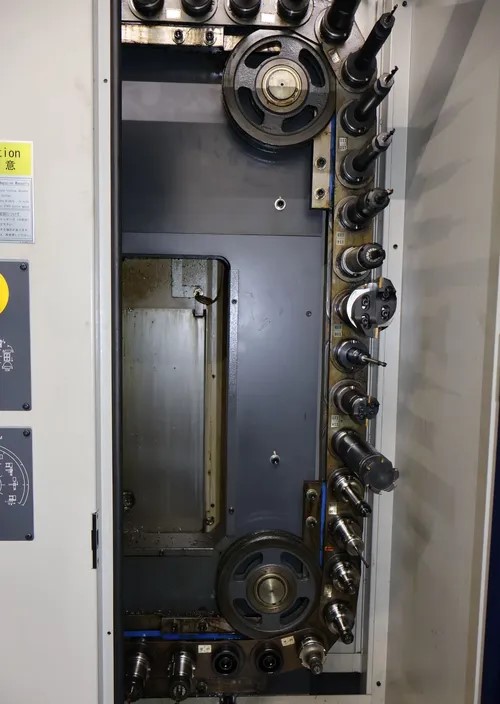

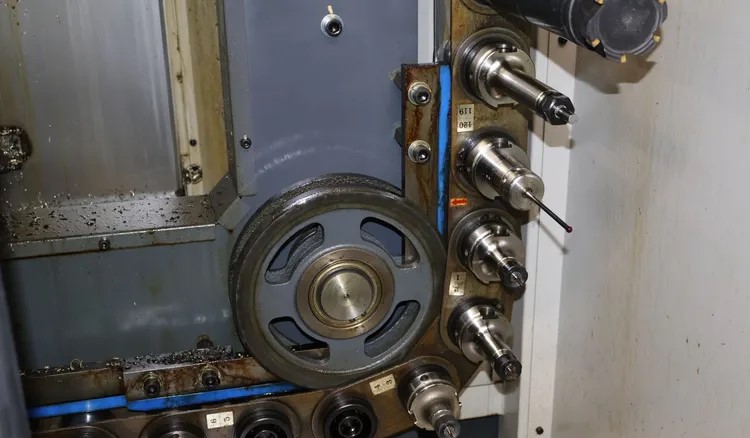

120 ATC CAPACITY

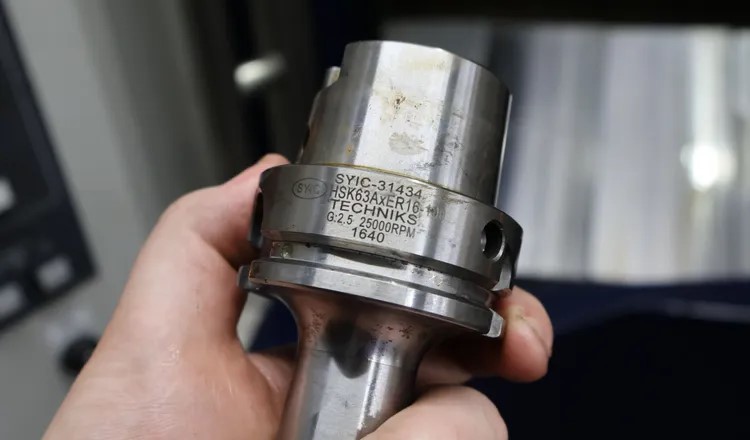

(80) HSK-63 TOOL HOLDERS INCLUDED IN SALE
RENISHAW OMI-2 PROBE

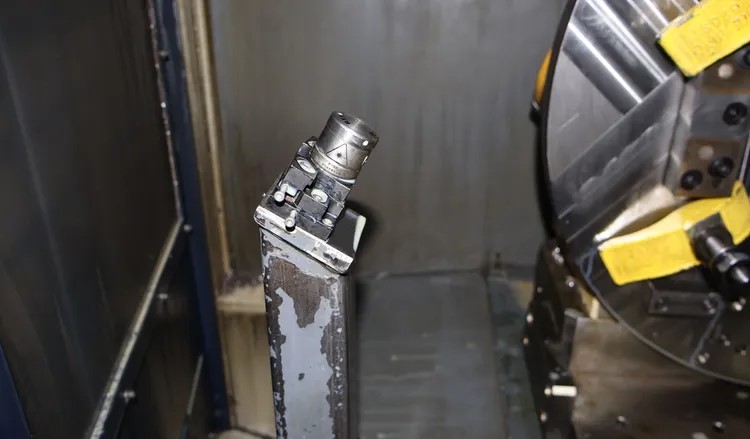

RENISHAW NC4 LASER TOOL SETTER

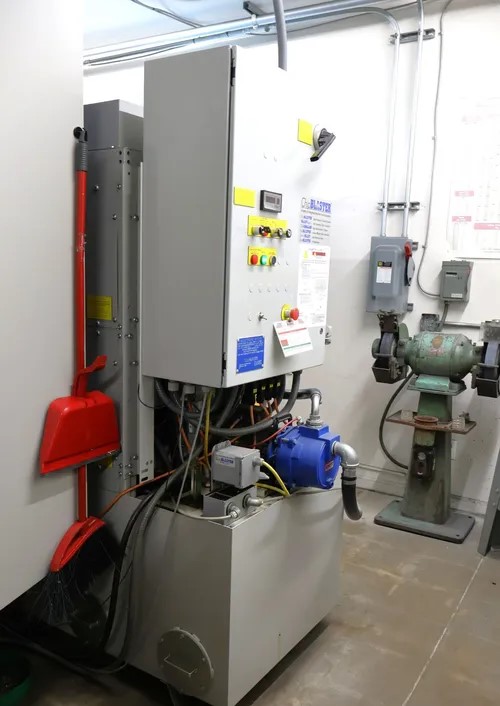

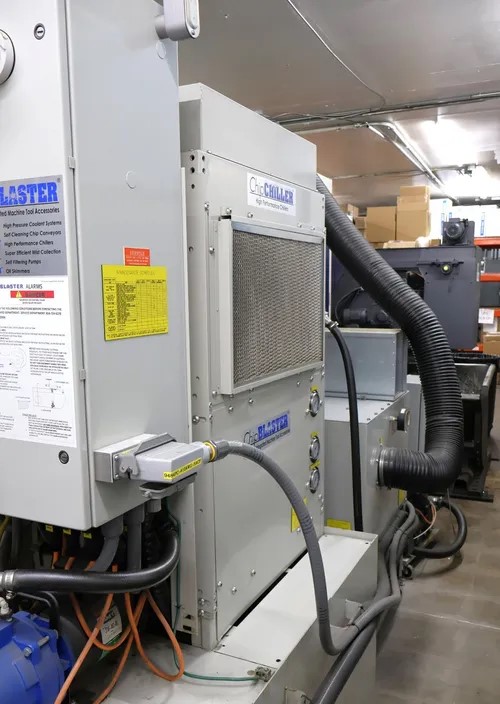

3000 PSI CHIPBLASTER HIGH PRESSURE COOLANT SYSTEM
MISTBLASTER SUPER EFFICIENT MIST COLLECTION SYSTEM

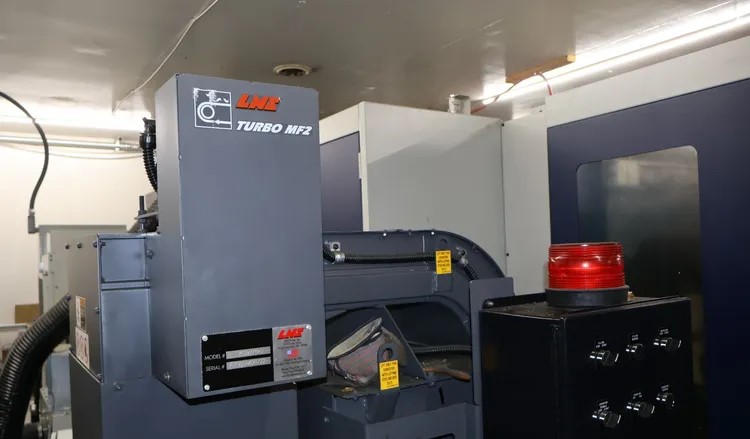

LNS TURBO MF2 CHIP CONVEYOR: DUAL CONVEYOR DESIGN TO REMOVE LARGE CHIPS OF ALL SIZES AS WELL AS FINES

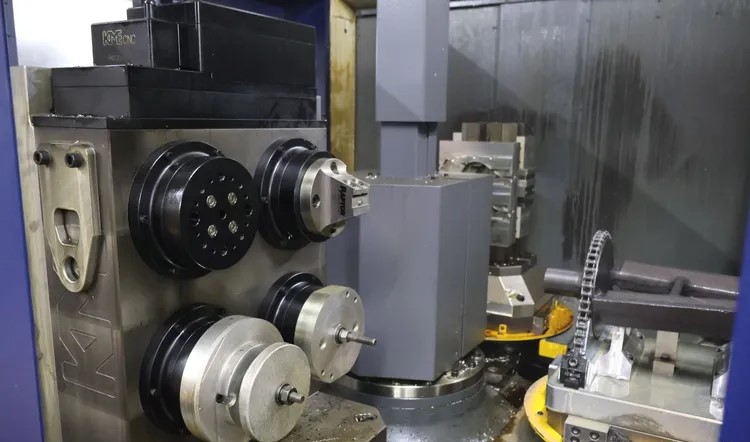

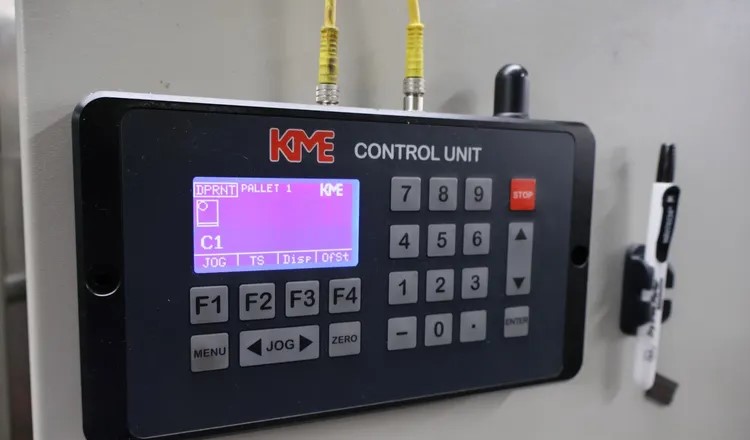

(2) KME CNC TS-400MM 5-AXIS WIRELESS TOMBSTONES (AS PICTURED AND W/CONTROLLER) -- $200,000 VALUE

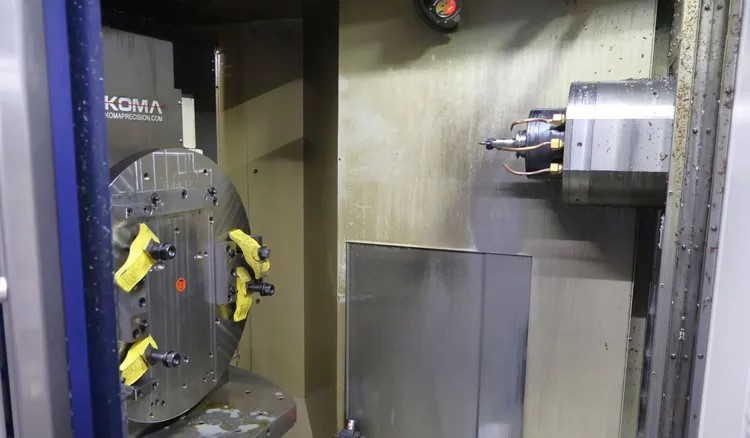

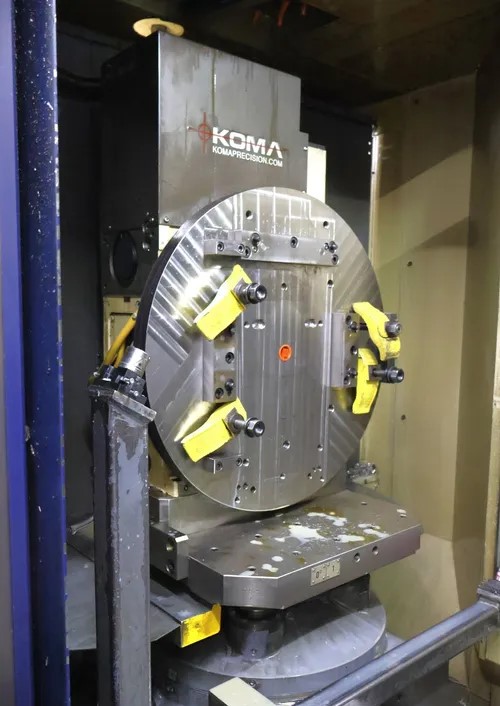

(1) KOMA RBA-400K 5-AXIS TOMBSTONE (AS PICTURED) -- $75,000 VALUE
ALL AVAILABLE TOMSTONES WILL BE INCLUDED WITH SALE OF MACHINE

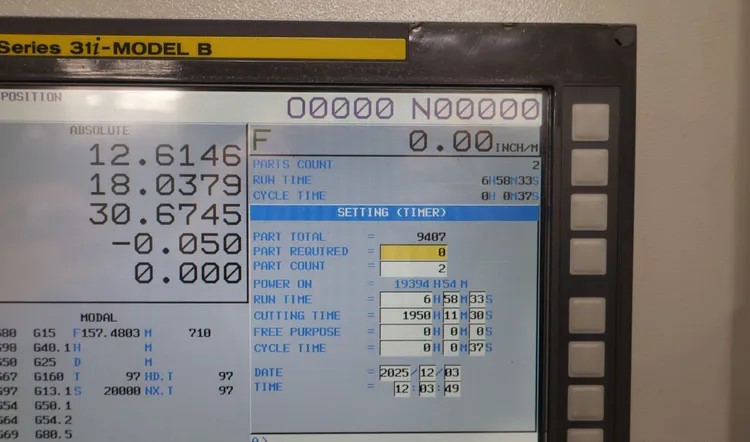

HOURS OF USE (AS OF 12/3/2025):
* POWER ON: 19,394 HOURS
* CUTTING: 1,950 HOURS
MACHINE WAS COMPLETELY UNDER-UTILIZED, PURCHASED FOR AN R&D VENTURE THAT DID NOT DEVELOP.
** MACHINE WAS INSTALLED AS-NEW IN 2017 IN CURRENT LOCATION. ONE OWNER MACHINE. NEVER SAW FULL SHIFT WORK
MACHINE IS IMPECCABLE MAINTAINED AND EQUIPPED. COMING OUT OF A SINGLE SHIFT SHOP AND IS AVAILABLE IMMEDIATELY. FRONT PLEXIGLASS PANE IS PRESENT, JUST REMOVED FOR ACCESS TO PALLET POOL.
