Description
Max Swing:
28.3″ (718.82 mm)
Max Cutting Diameter:
18.9″ (480.06 mm)
Max Cutting Length:
29.7″ (754.38 mm)
X-Axis Travel:
10.2″ (259.08 mm)
Z-Axis Travel:
32.7″ (830.58 mm)
Chuck Size:
12″ (304.8 mm)
Bar Capacity:
4″ (101.6 mm)
Spindle Bore:
4.53″ (115.06 mm)
Spindle Nose:
A2-11
Spindle Motor:
45 HP (33.6 kW)
Spindle Speed:
2,800 RPM
Turret Positions:
12
Equipped With

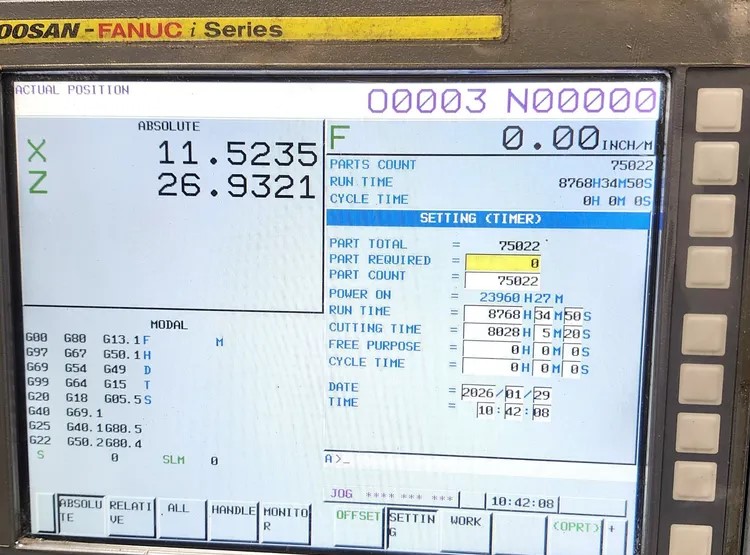

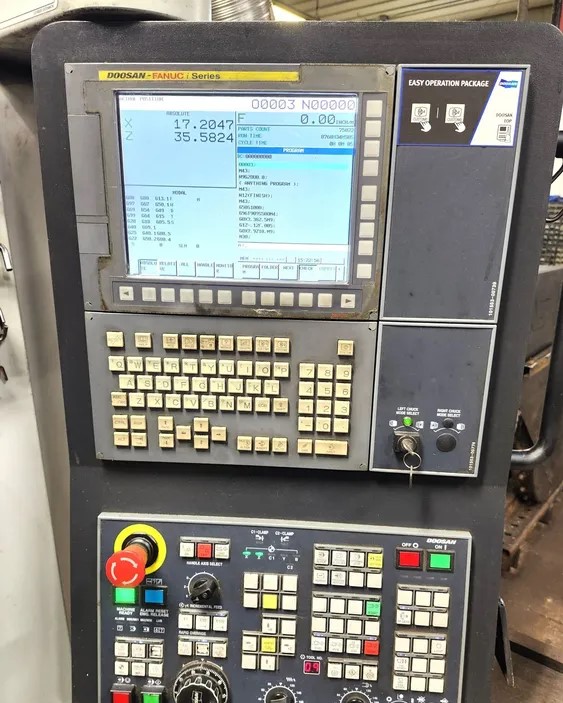

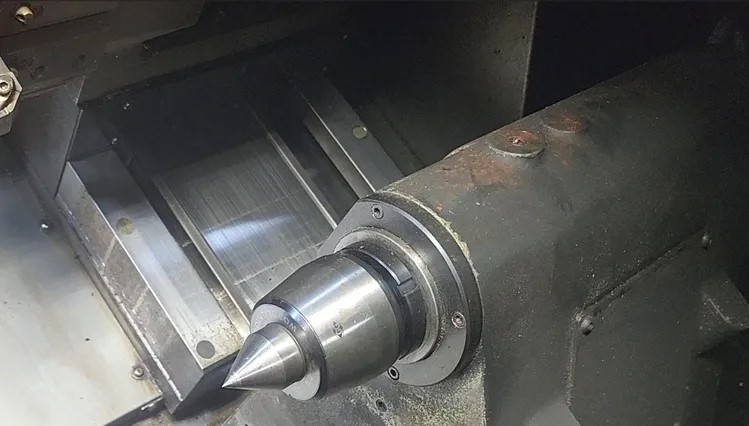

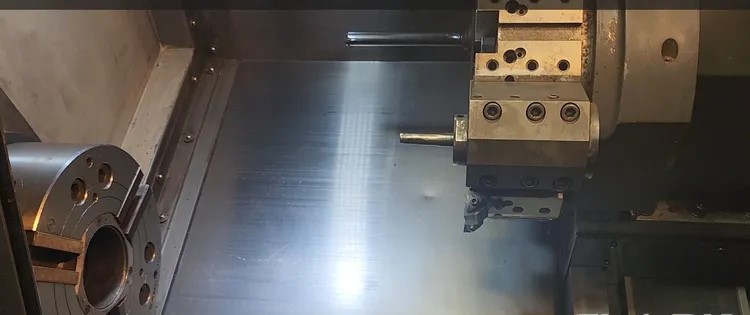

DOOSAN-FANUC i Series CNC Control, 2-Speed Gearbox, 12″ 3-Jaw Hydraulic Chuck, S26 Collet Chuck, Programmable Tailstock, Tool Presetter, Chip Conveyor, Box Ways
Additional Info

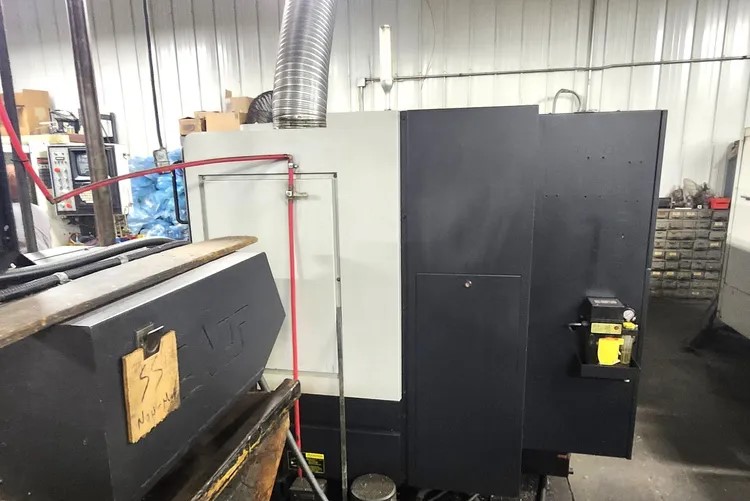

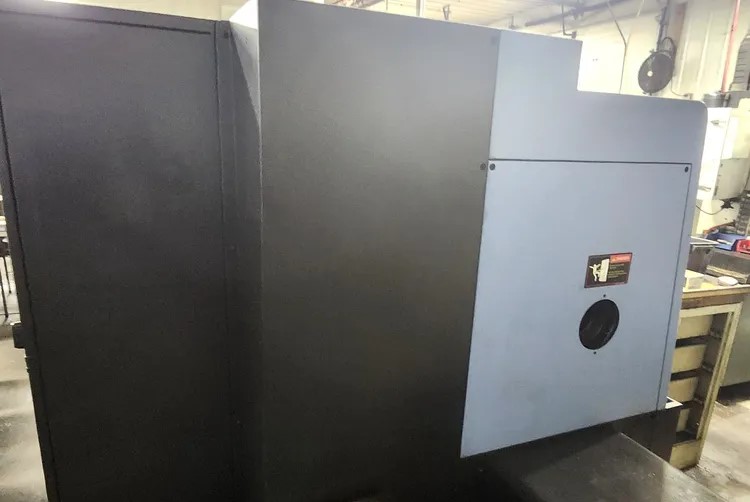

Original owner 2016 Doosan Puma GT 3100 2-axis CNC lathe in excellent condition, primarily used for cutting stainless steel & aluminum. In plant, under power, and ready for immediate inspection, demo, or purchase. As-is, where-is. Contact us for additional photos, video (if available), or to schedule a viewing. Sourced from trusted partner dealer. Also available in the same plant: 2017 Doosan Lynx 2100LB.
