Amada Turret Punch Press

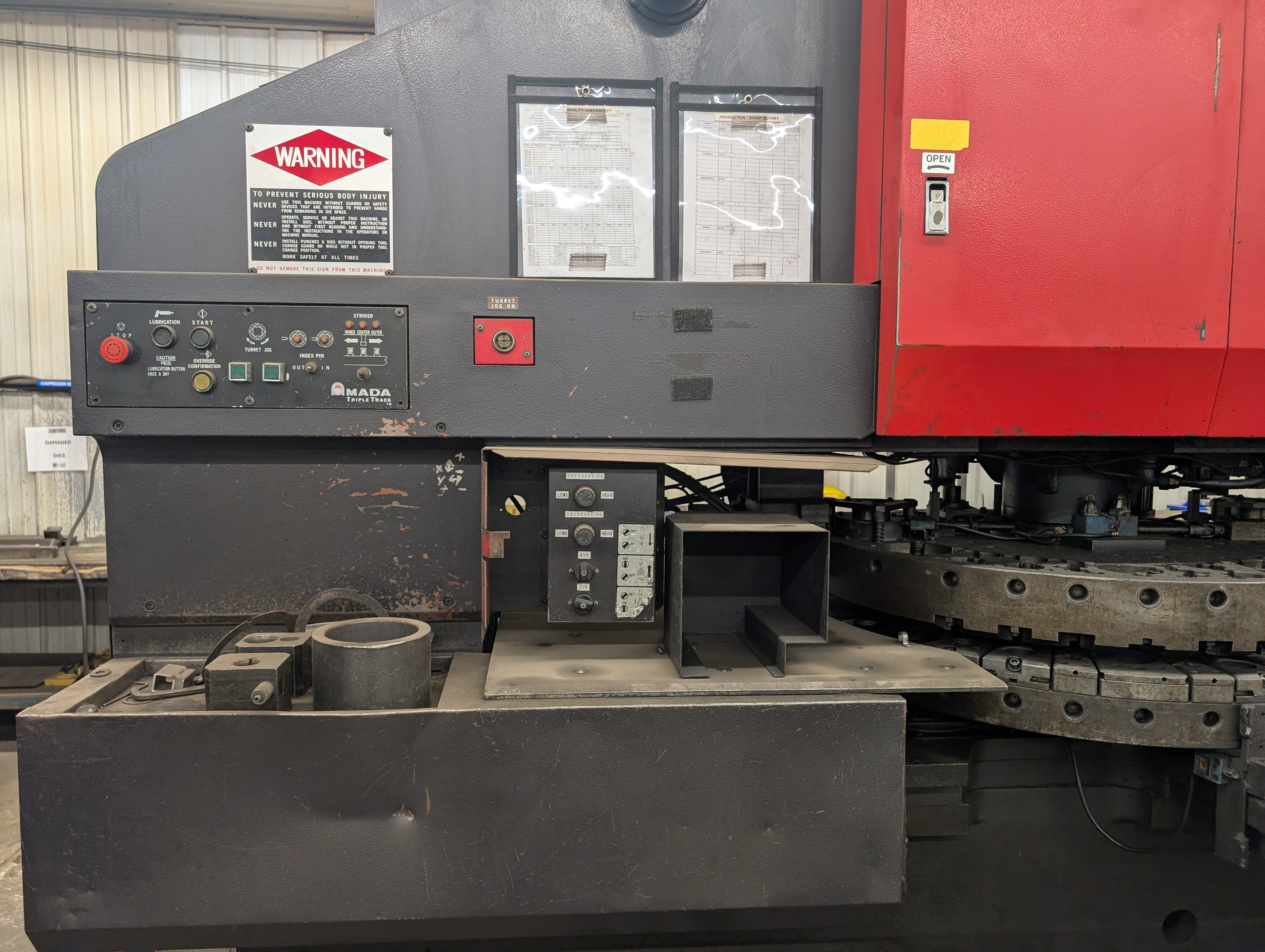

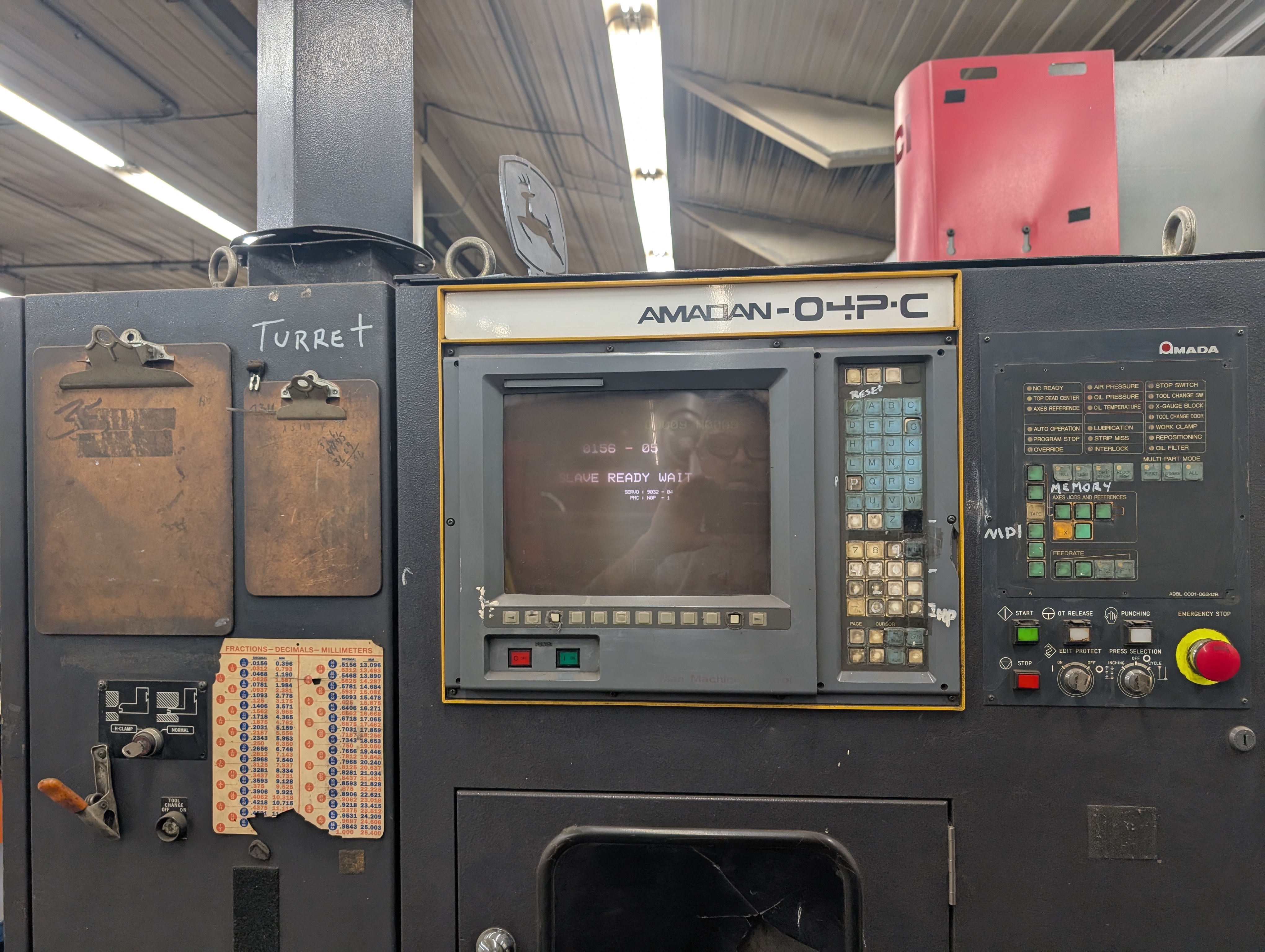

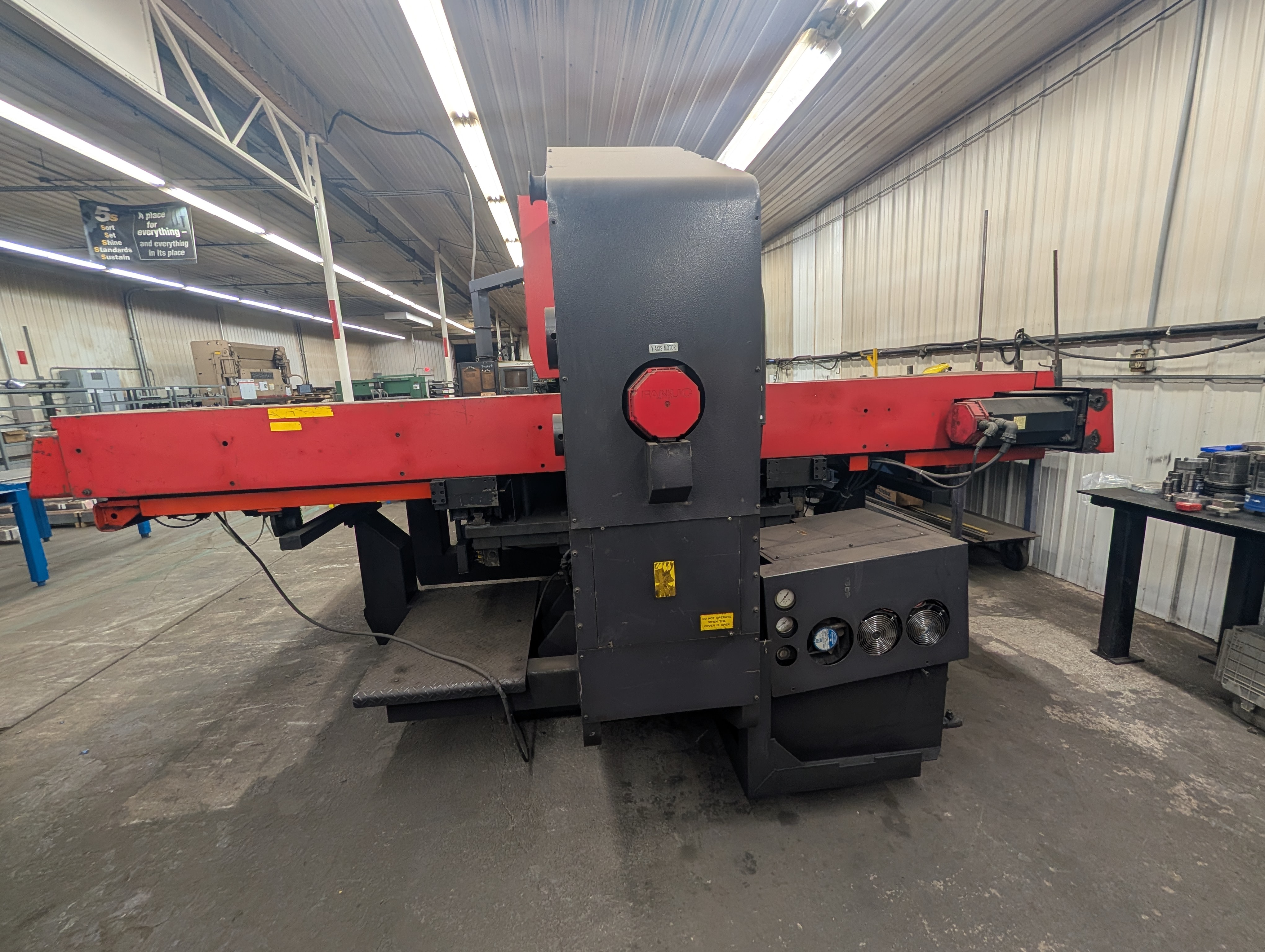

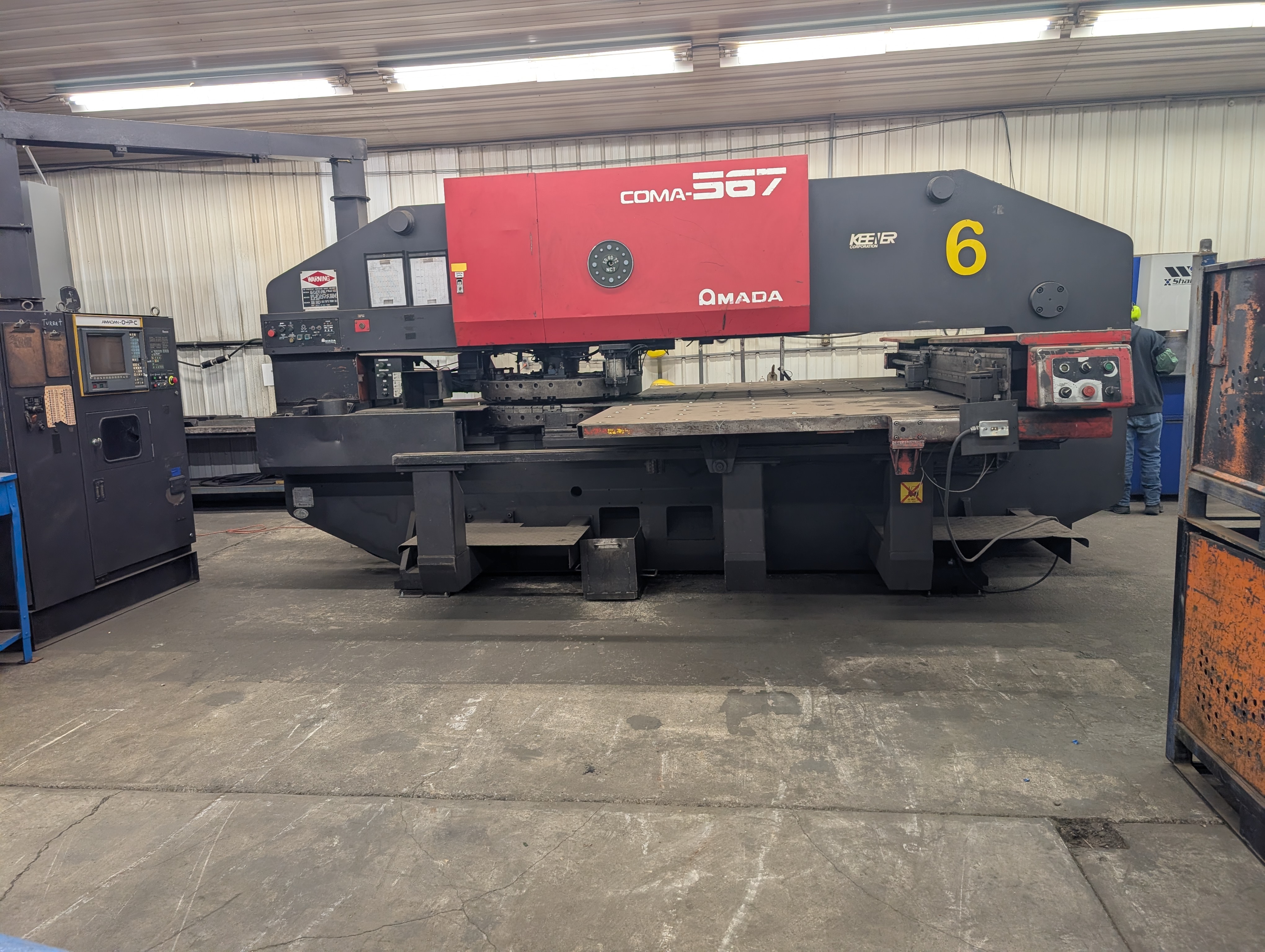

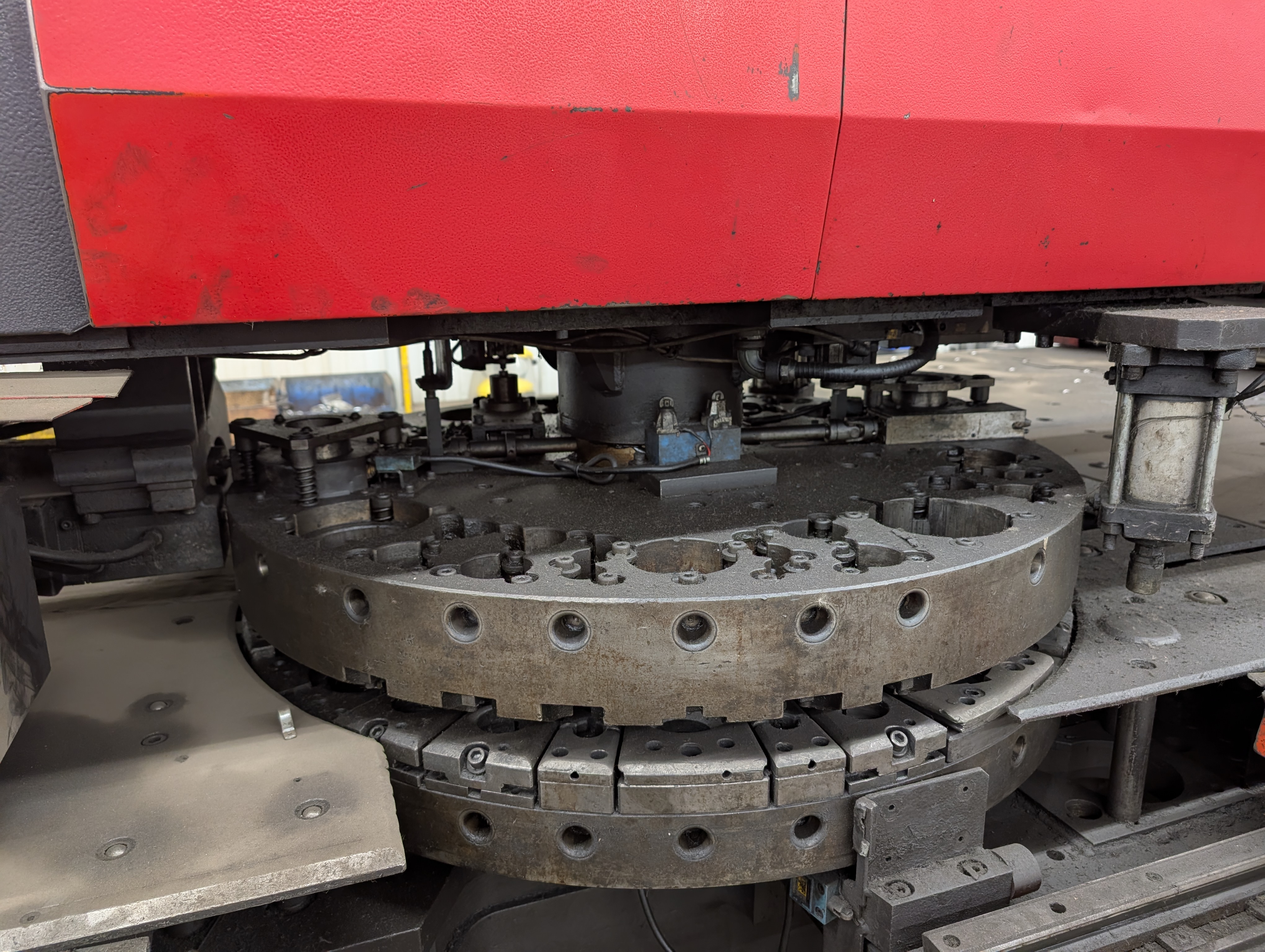

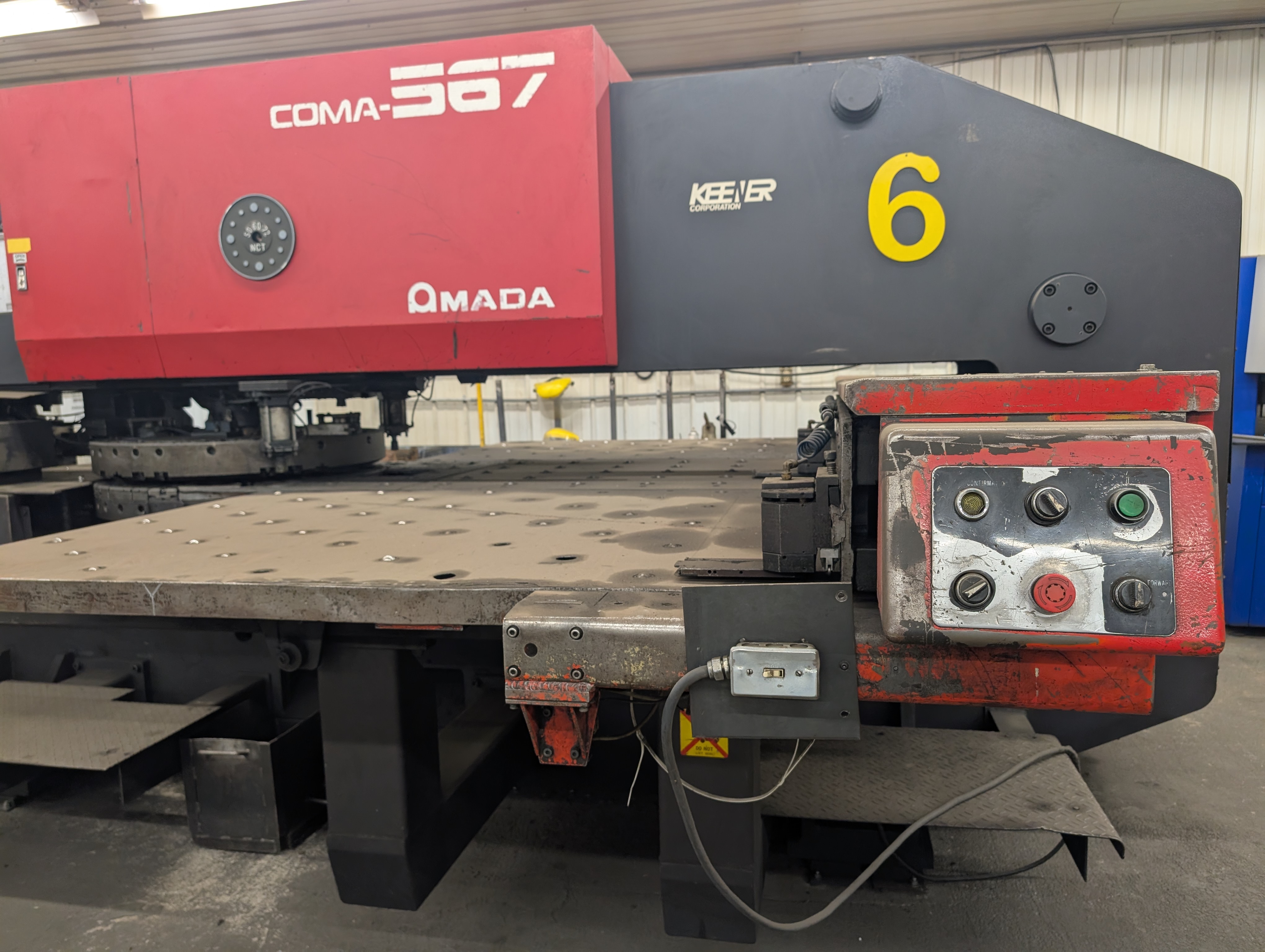

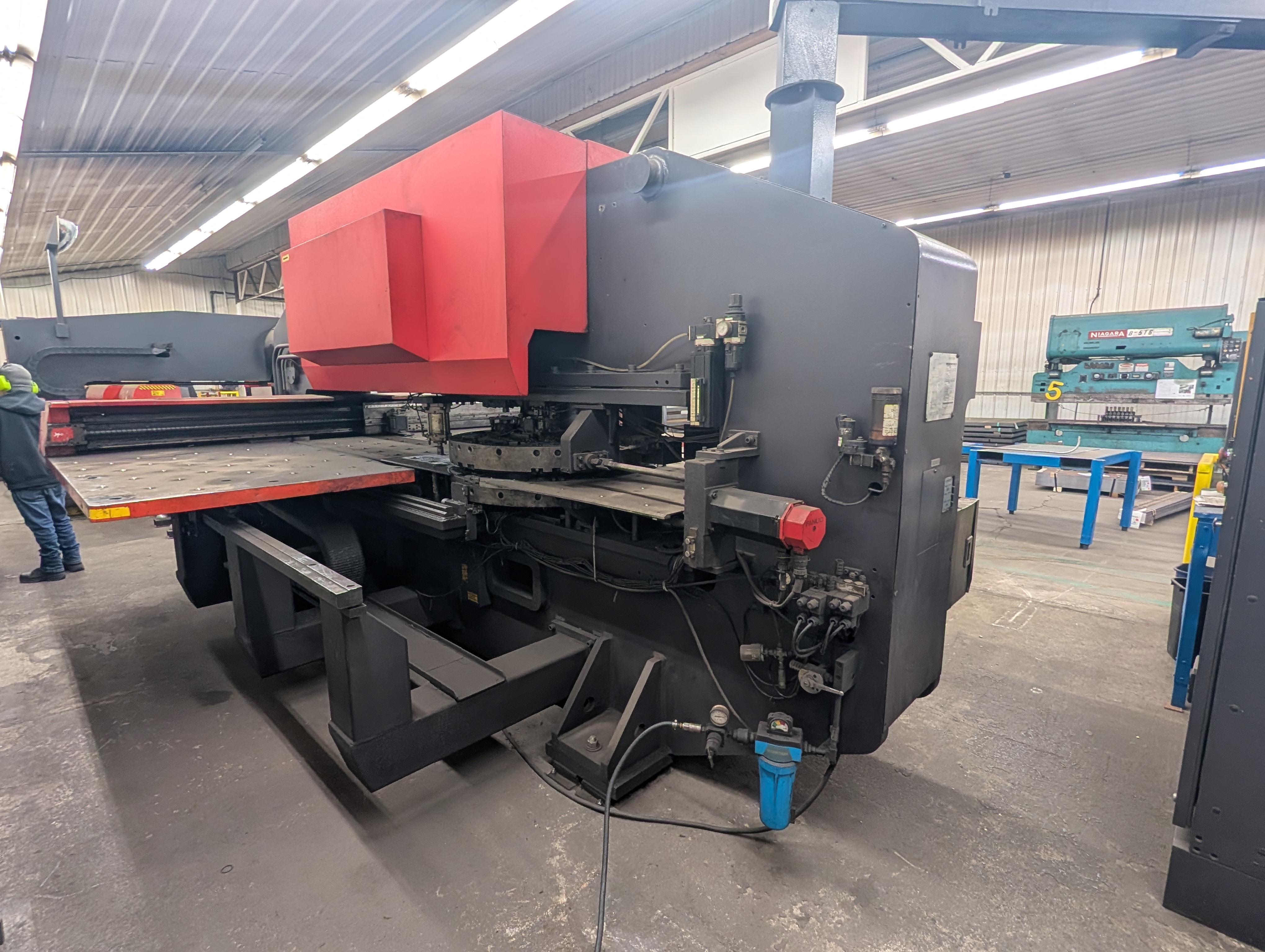

Amada COMA 506072 50-Ton CNC Turret Punch Press Heavy-duty CNC turret punch press designed for punching, nibbling and producing formed features in sheet metal. Features a 50-ton punching capacity, 44-station turret and automatic sheet repositioning for processing larger workpieces. Specifications Manufacturer: Amada Model: COMA 506072 Year: 1991 Machine Type: CNC Turret Punch Press Punching Capacity: 50 Tons Turret Capacity: 44 Stations Maximum Sheet Size With Repositioning: Approximately 60" × 72" Maximum Material Thickness: Approximately 0.250" Mild Steel Maximum Punch Diameter: Approximately 4.5" Hits Per Minute With 1" Movement: Approximately 200 Maximum Positioning Speed: Approximately 2,559 IPM Turret Speed: Approximately 30 RPM Main Motor: Approximately 7.5 HP Automatic Repositioning: Yes Machine Weight: Approximately 36,000 lbs. Overall Dimensions: Approximately 186" L × 195" W × 104" H Equipped With 44-station bi-directional turret Automatic sheet repositioning CNC control Powered X- and Y-axis sheet positioning Workholding clamps Ball-transfer worktable Mechanical punch-drive system Operator control station Machine Description The Amada COMA 506072 is a heavy-duty CNC turret punch press designed for processing medium- and heavy-gauge sheet metal. Its 50-ton punching capacity provides greater forming and punching capability than smaller 20- and 30-ton turret punches. The machine is equipped with a 44-station turret, allowing multiple punch sizes and shapes to remain installed for efficient production. Automatic repositioning extends the effective working area and permits processing sheets approximately 60" × 72", depending upon tooling, clamp locations and programmed repositioning. This machine is suited for producing electrical enclosures, equipment panels, structural sheet-metal components, brackets and other fabricated products requiring repeated holes, profiles and formed features.
