Description
Recently Rebuilt by Amada – Production Ready

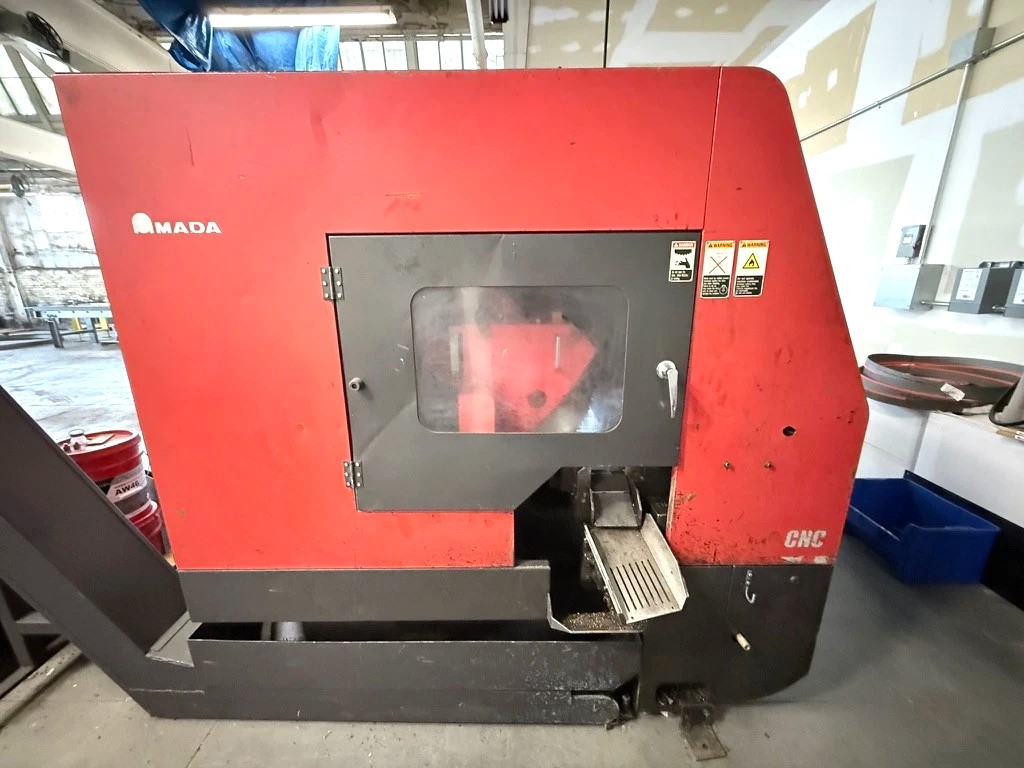

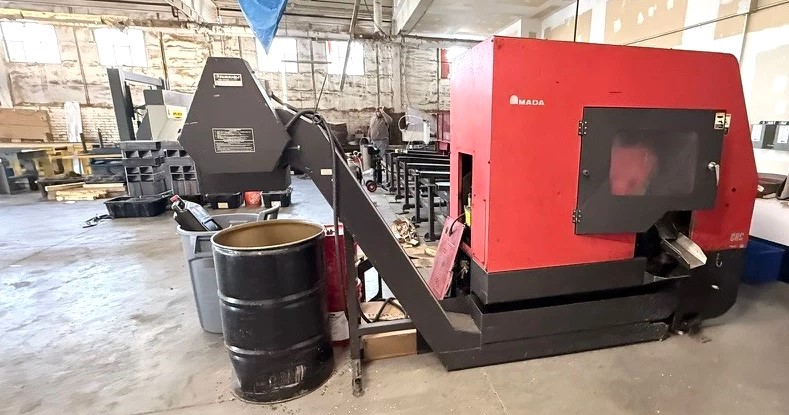

This 2011 Amada CMB-100CNC has just been professionally rebuilt by Amada and is fully ready for tight-tolerance, high-production cutting applications.
Recent rebuild work includes:
New ball screw
New servo motor
New saw blade
New guide blades
New position sensors
New front vise
Hydraulic fluid change
New thrust bearings
This machine is clean, precise, and ready to go directly into production.
Overview
The Amada CMB-100CNC is a high-precision automatic circular cold saw designed for cutting round and square metal stock with exceptional repeatability. Equipped with CNC control, inverter-driven variable speed, and automatic servo feed, this model is ideal for high-volume environments demanding accuracy and consistency.

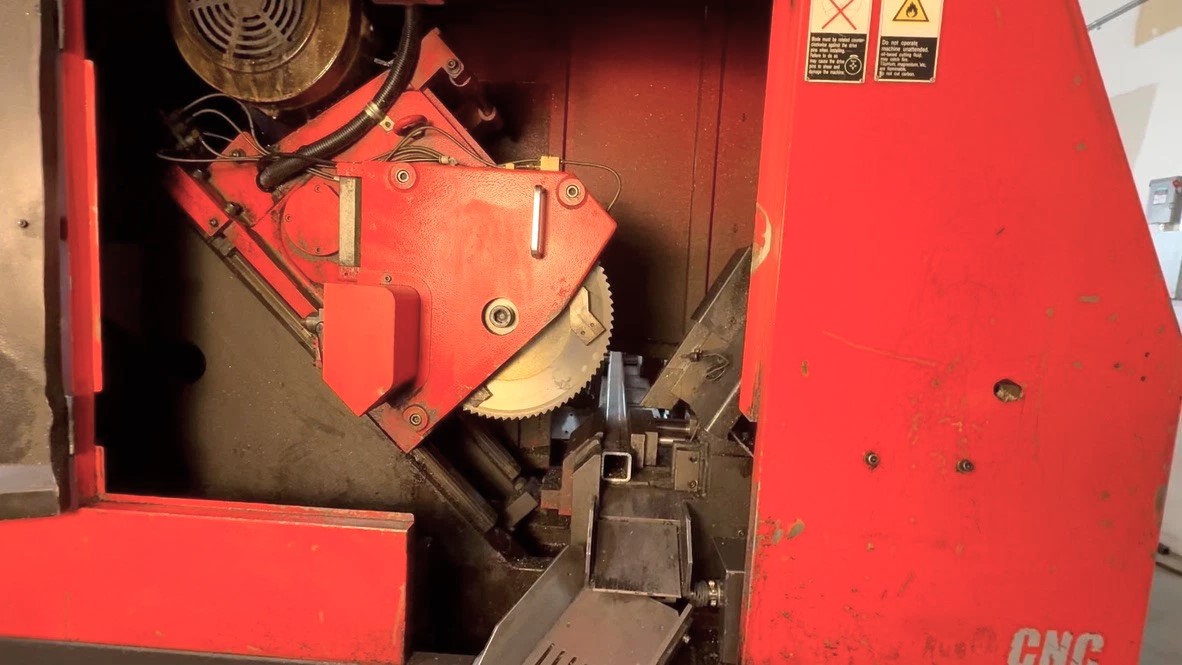

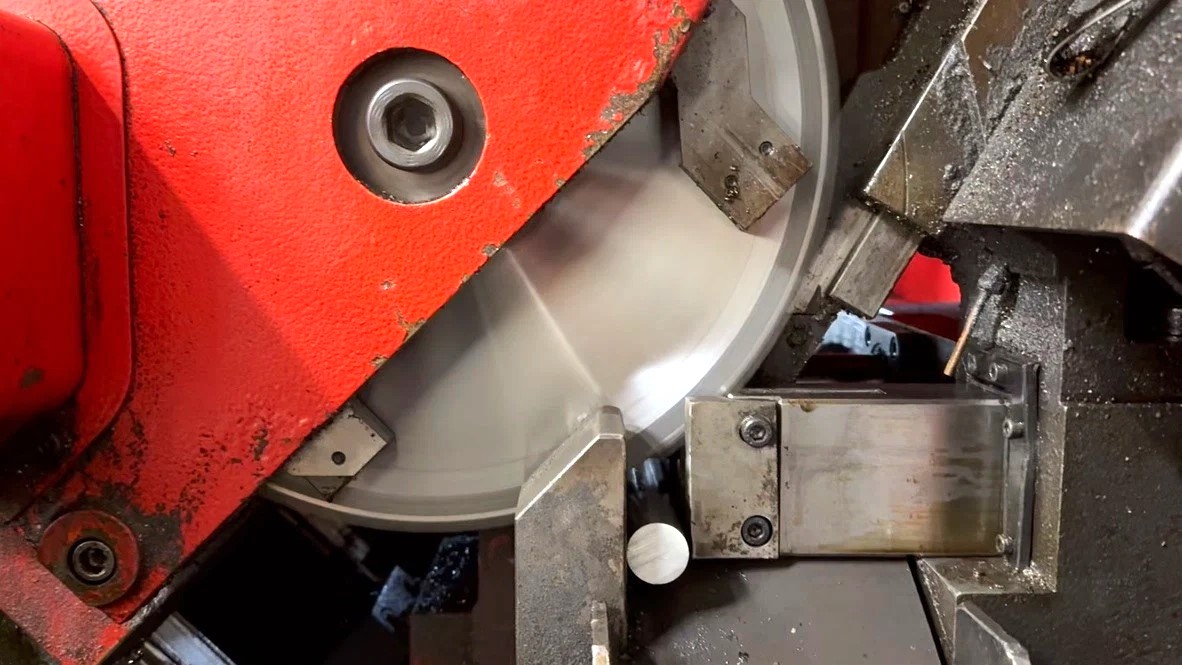

Blade
Diameter: 360 mm (14.17")
Bore: 40 mm
Thickness: 2.6 mm
Motor
11 kW (15 HP) saw motor
Blade Speed
Inverter-controlled
Adjustable from 56 – 210 m/min
(Some models rated 50 – 250 RPM equivalent)
Control
Amada CNC control for programmable cutting cycles
Cutting Capacity
Round: Up to 100 mm (3.94")
Square: Up to 75 x 75 mm (2.95" x 2.95")
Feed System
Automatic servo-controlled material feed
Features
Automatic head sorting (trim/remnant handling)
Minimal lubrication (micromist system)

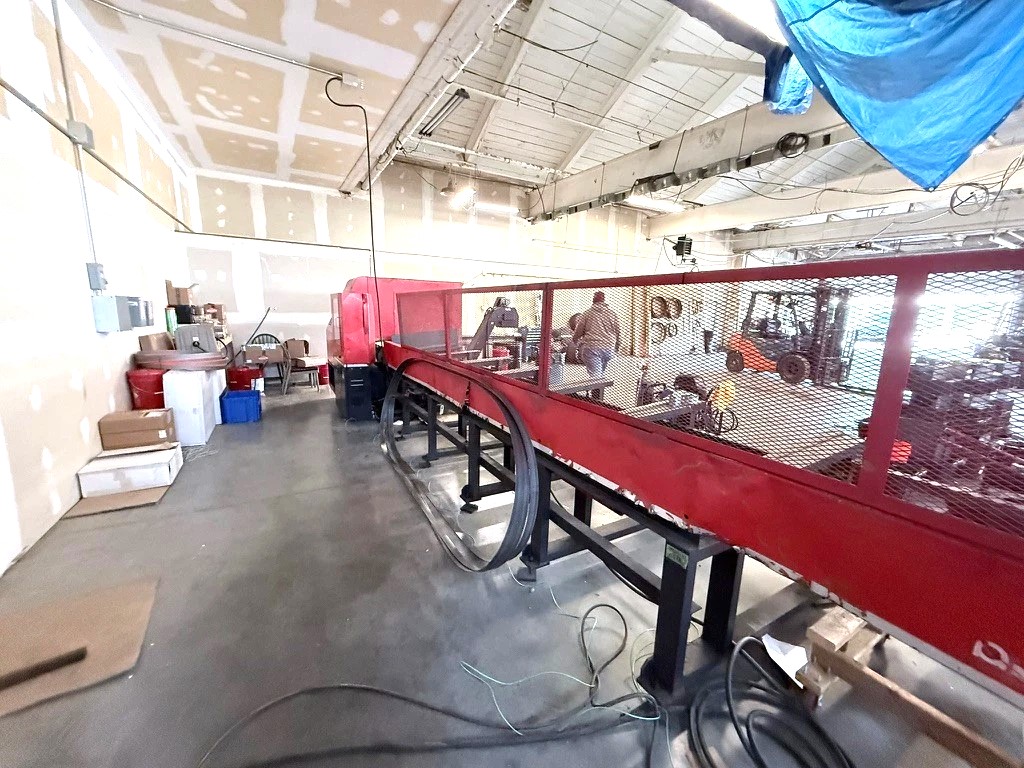

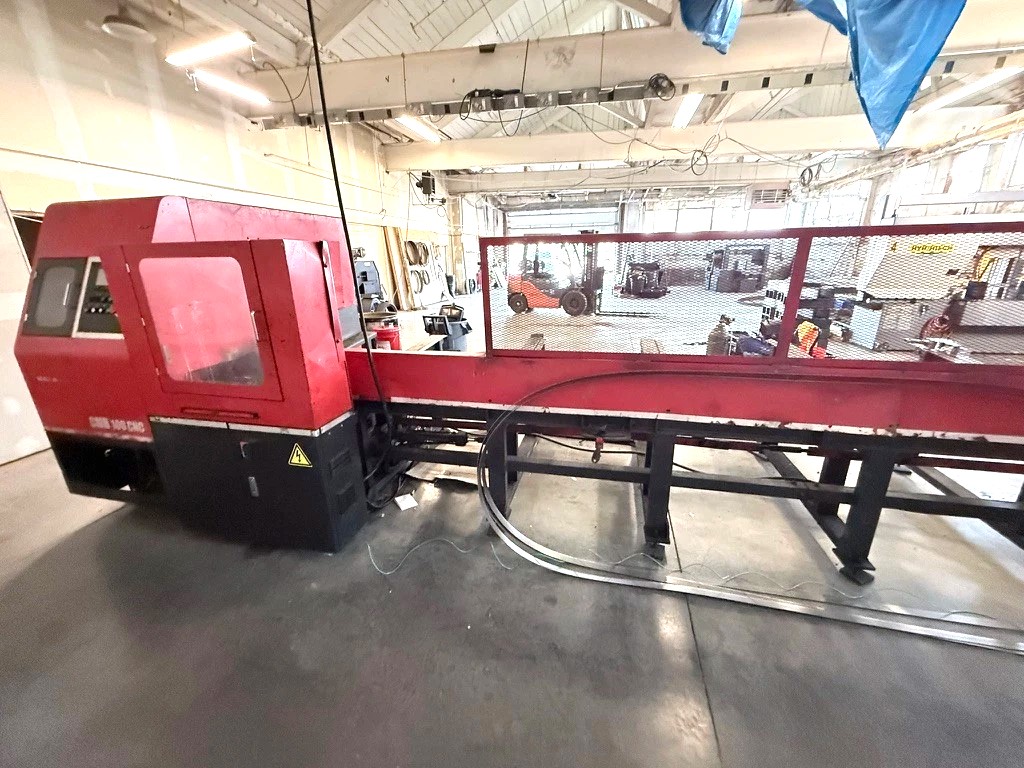

Inclined automatic bar loader option
High repeatability for tight tolerances
Power
11 kW / 15 HP
Ideal Applications
High-volume production cutting
Tight tolerance metal stock preparation
CNC-driven batch production
Fabrication and machining support operations
