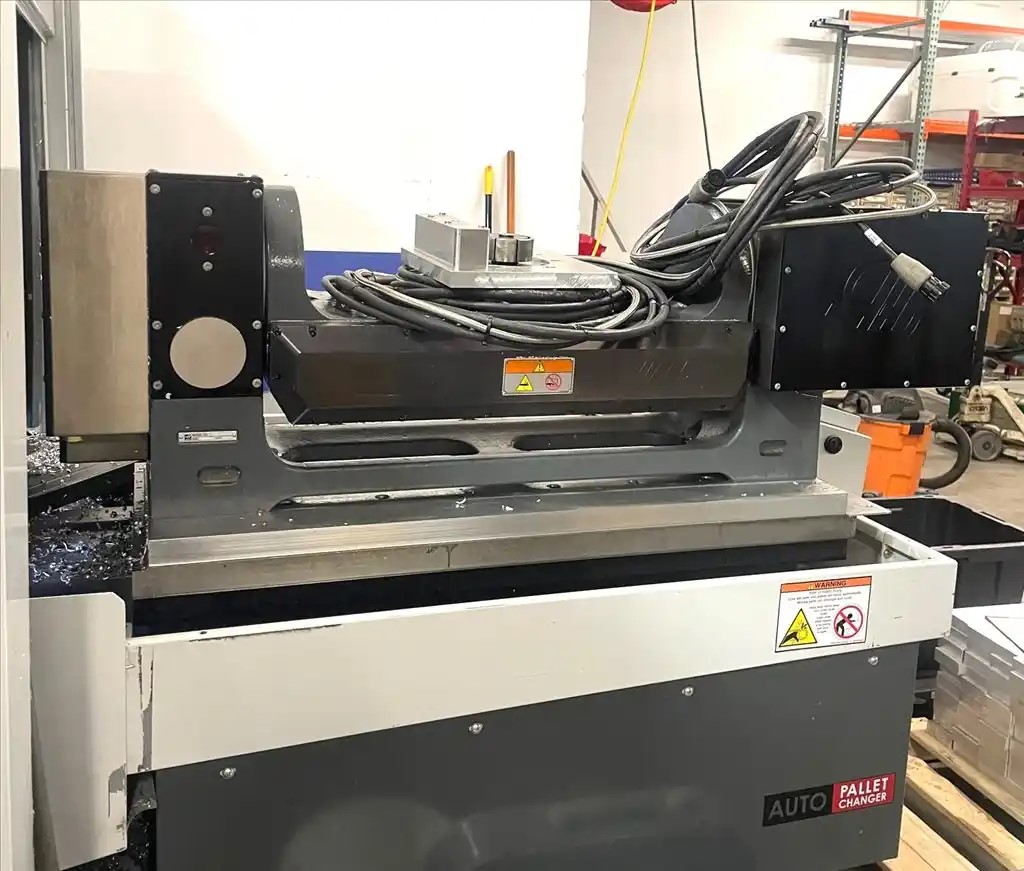

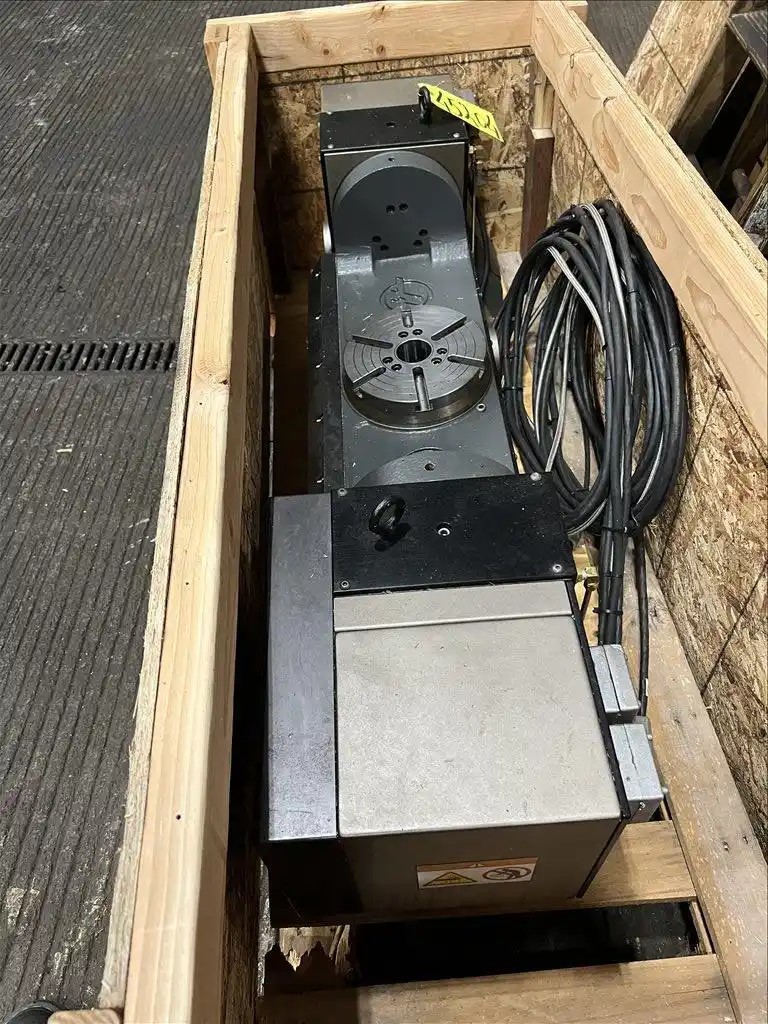

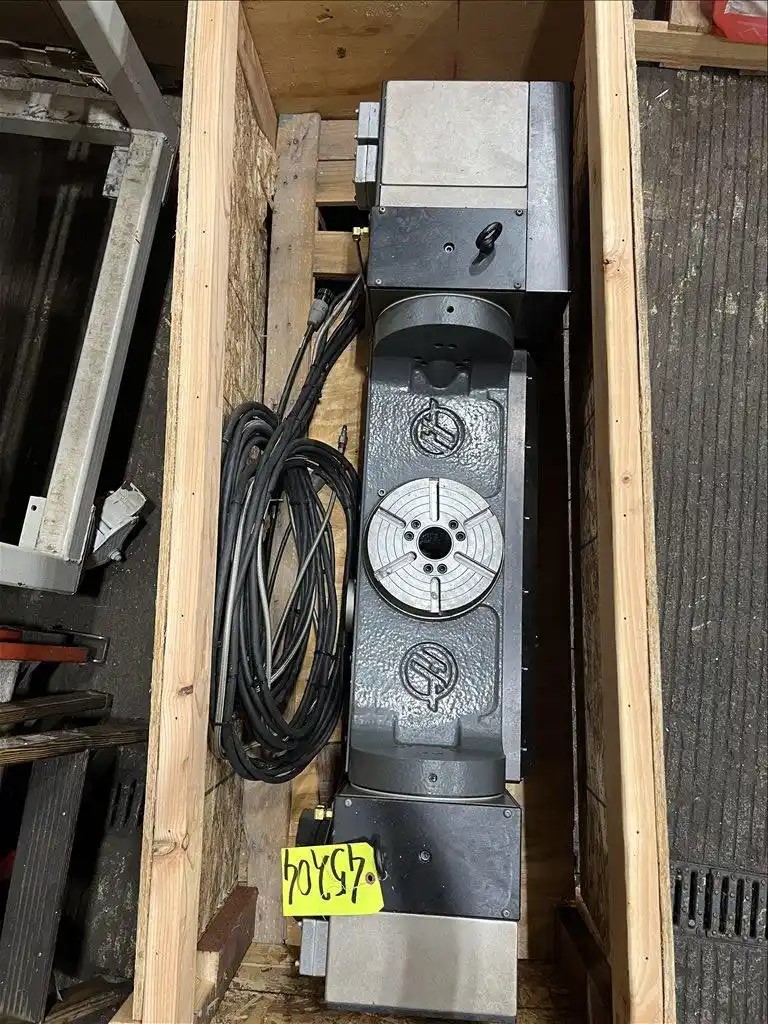

PLATTER
Platter Diameter: 8.3"
Max. Weight on Platter: 200 lbs
Max. Part Swing: 23.5"
Number of Std T-Slots: 6 @ 60°
SPINDLE - A (TILT)
Max. Speed: 60°/sec
Max. Torque: 300 ft-lb
Backlash: 30 arc-sec
Gear Ratio: 90:1
Timing: 2:1
Brake Torque @ 100 PSI: 400 ft-lb
SPINDLE - B (ROTARY)
Max. Speed: 60°/sec
Max. Torque: 210 ft-lb
Max. Runout: 0.0005"
Backlash: 30 arc-sec
Gear Ratio: 90:1
Timing: 2:1
Brake Torque @ 100 PSI: 200 ft-lb
INDEXING - A (TILT)
Max. Rotation/Step: +/- 120°
Resolution: 0.001°
Accuracy: +/- 15 arc-sec
Repeatability: 10 arc-sec
Disclaimer
Preliminary specifications are provided for general guidance only and may change without notice.
They are believed to be accurate but are not guaranteed. All specifications, dimensions, capacities,
weights, and performance figures should be independently verified by the buyer prior to purchase or use.
Bridgeline Machinery Corp. makes no representations or warranties, express or implied, regarding the completeness,
accuracy, or suitability of any machine specifications, and shall not be liable for any errors or omissions.
