Machine Specifications
Specifications
Max. Pre-Milling Thickness: 0.07"
Max. Edge Thickness: 0.11"
Workpiece Thickness: 0.31" - 1.96"
Min. Workpiece Width: 3.1"
Max. Workpiece Length: 7.1"
Feed Speed: 33 FPM
Glue Application Thickness: 0.11"
Electrical: 400V/3Ph/50Hz
Equipped With

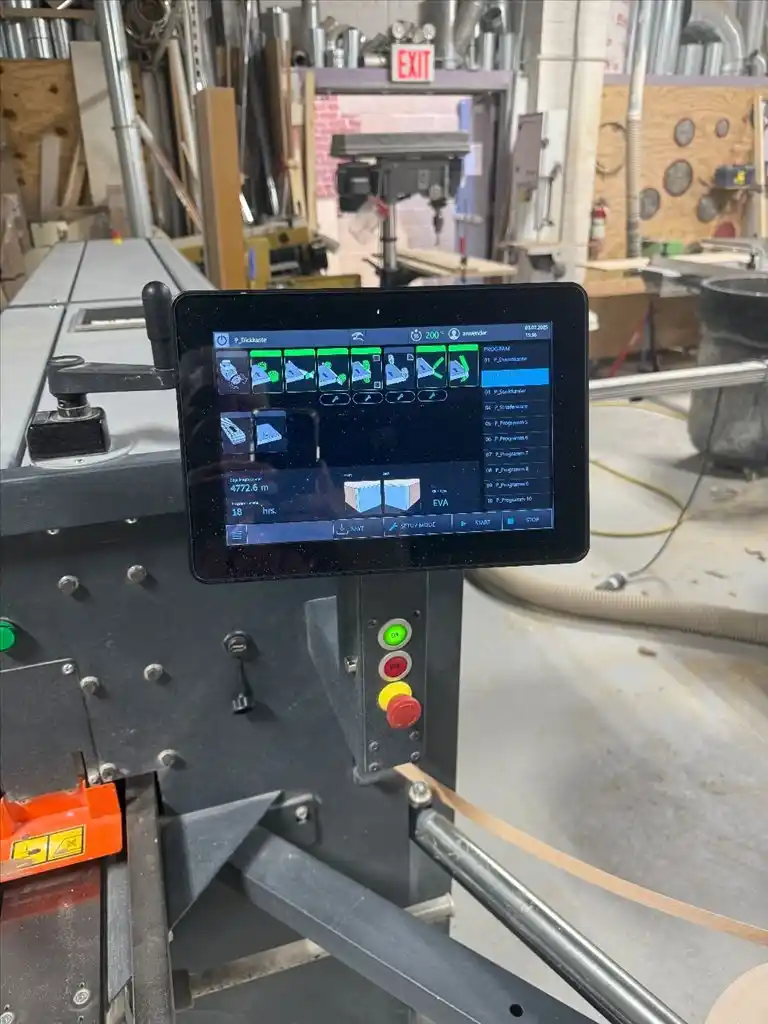

SPS Control w/ 15" LED Touchscreen
Corner Rounding Unit
Surface Scraper w/ Dual Tracing
Trim Saw
Double Roller Overhead Pressure System
More Info

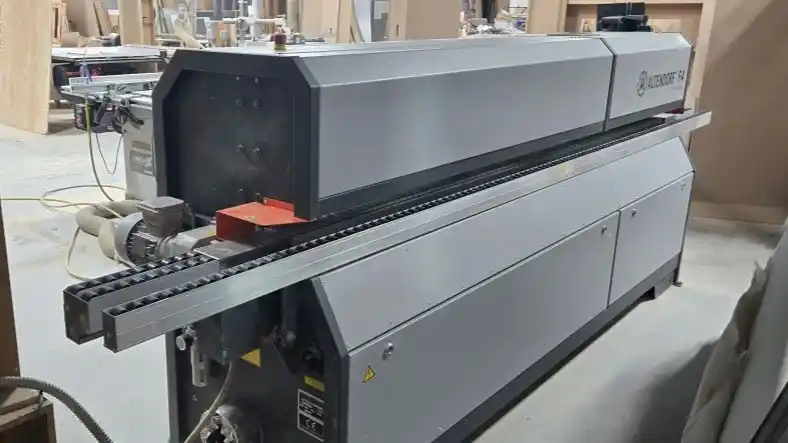

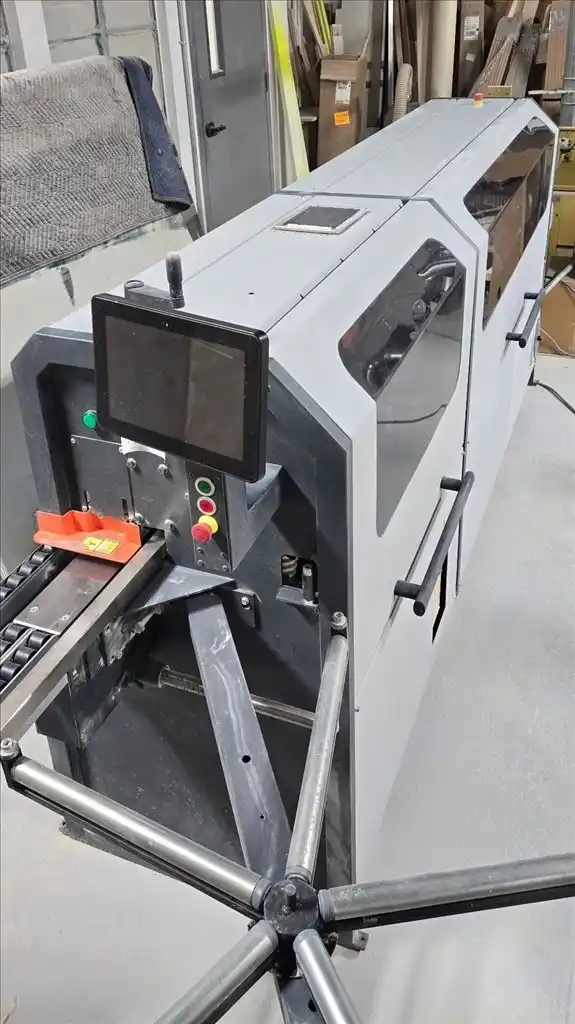

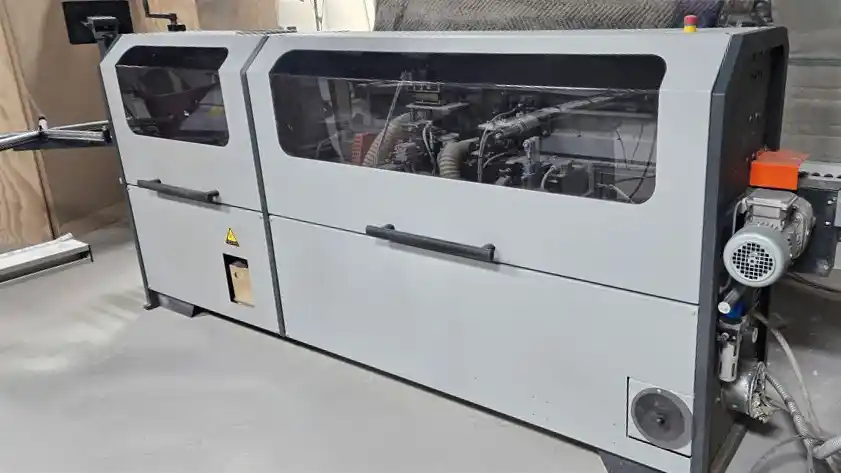

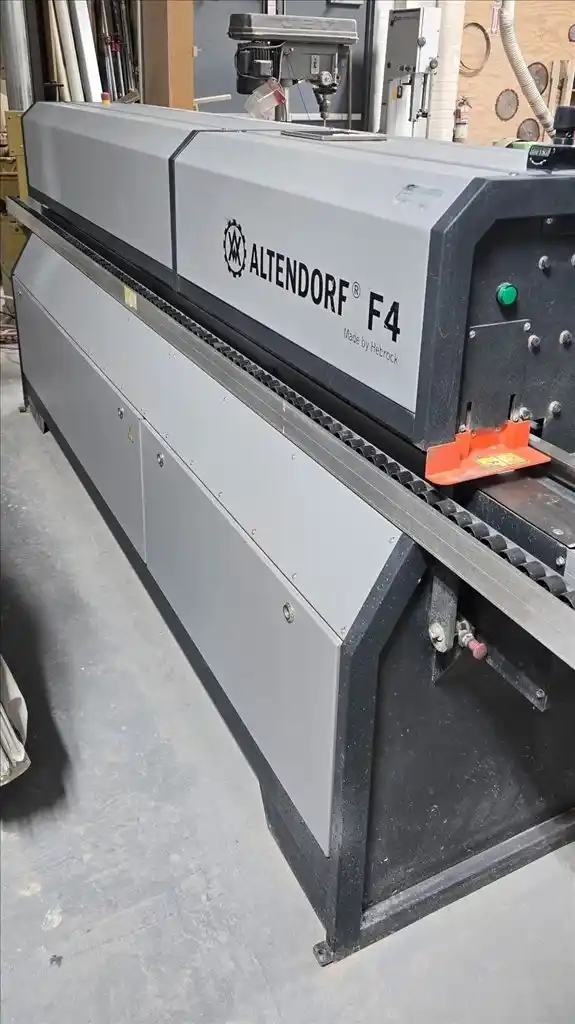

This 2023 Altendorf / Hebrock F4 edgebander is equipped for precise and efficient edge processing in woodworking and panel production. It offers a maximum pre-milling thickness of 0.07″, edge thickness up to 0.11″, and handles workpiece thicknesses from 0.31″ to 1.96″ with a minimum width of 3.1″ and maximum length of 7.1″. The machine runs at a feed speed of 33 FPM and features 400V/3Ph/50Hz electrical. Equipped with SPS control and a 15″ LED touchscreen, corner rounding unit, surface scraper with dual tracing, trim saw, and double roller overhead pressure system, this F4 provides versatile functionality in a compact design.
As Is, Where Is
