Description
X-Axis Travel: 261"
Y-Axis Travel: 43.3"
Z-Axis Travel: 16.7"
Working Capacity (@ 90°): 261" x 21.4" x 11.6"
Spindle Speed: 17,000 RPM
Tooling: (12) ISO 30
Max. Tool Diameter: 0.8"
Max. Tool Length: 5.9"
Max. Tool Blade Diameter: 8.7"
Equipped With
23" Touchscreen OMEGA 200 CNC Control
Electrospindle Positioning (0°/90°/180°)
FOMCAM Software
Electric Cabinet Cooling
Flow Drilling Kit
Lubrication System Kit
Chip Conveyor
Retractable Pneumatic Stop
More Info

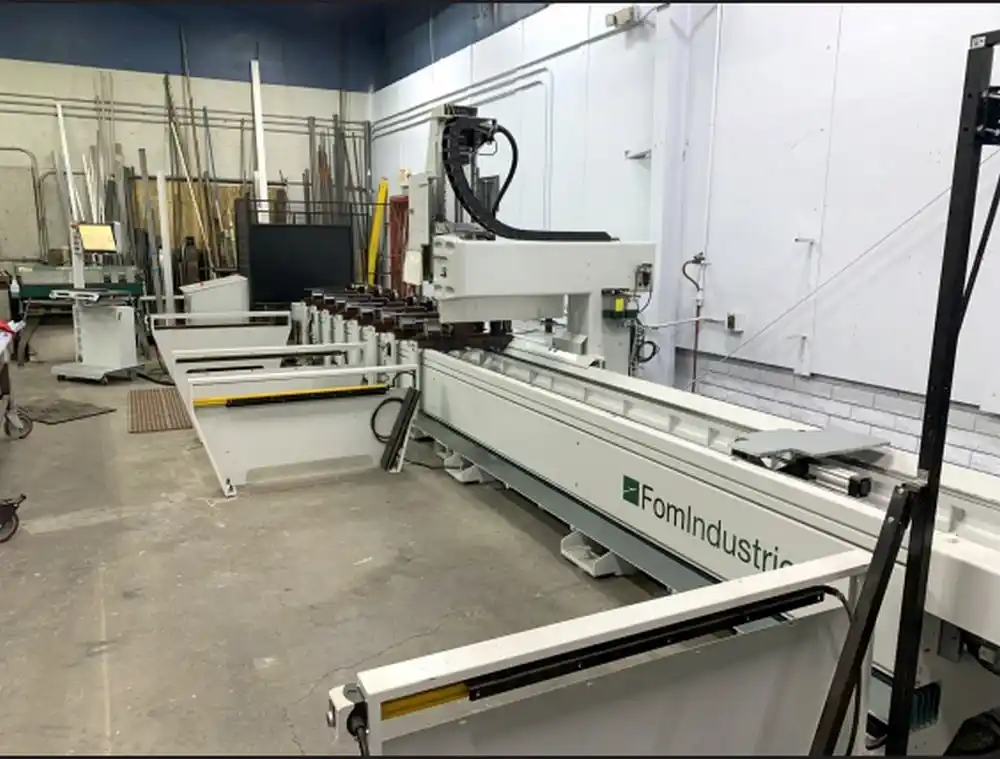

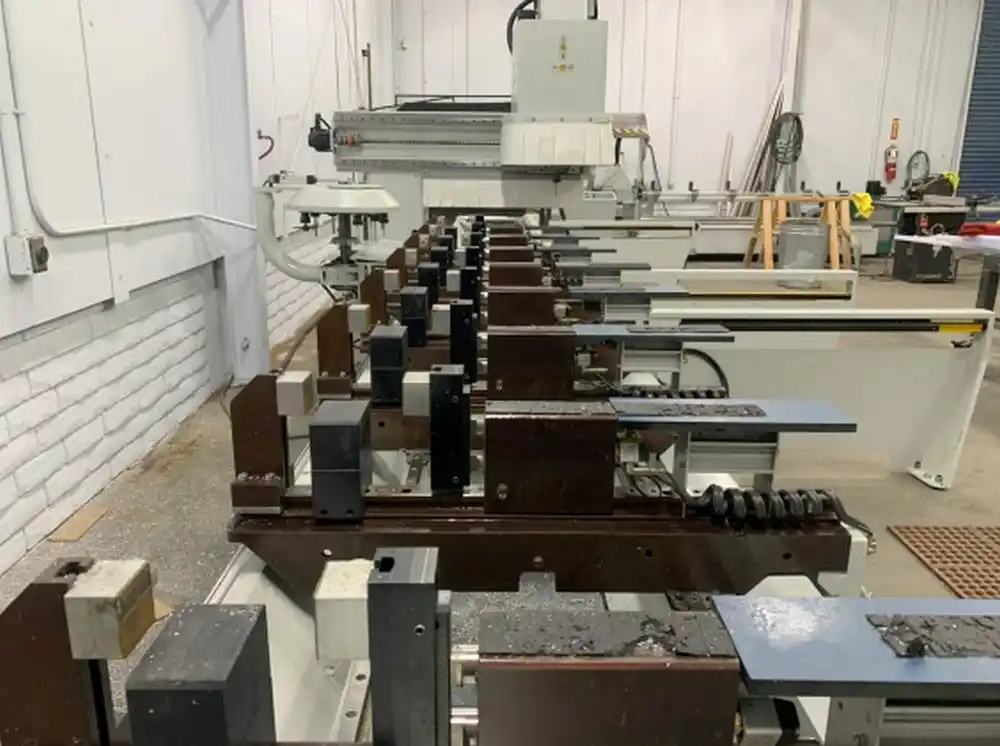

This FOM Industrie ARGO 70 is a 2022 CNC profile machining center engineered for fast, high-accuracy processing of long aluminum or composite extrusions. With an exceptional 261″ X-axis travel, 43.3″ Y and 16.7″ Z, a 17,000 RPM ISO 30 electro-spindle, and a 12-position tool changer, it excels at machining door and window frames, curtain-wall mullions, trailer rails, lighting housings, and other extended-length profiles. The machine is equipped with an OMEGA 200 touchscreen CNC, FOMCAM software, electro-spindle indexing (0°/90°/180°) for multi-side operations, a flow-drilling kit for threaded inserts, chip conveyor, and automatic lubrication—delivering precise, burr-free results in a single setup.
As Is, Where Is.
