Machine Specifications
Rated Capacity: 2200 SCFM @ 100 PSIG/100°F
Pressure Dew Point: ISO Class 2 -40°F (-40°C)
Max. Working Pressure: 150 PSIG
Min. Operating Pressure: 60 PSIG
Max. Inlet Air Temperature: 120°F
Min. Inlet Air Temperature: 40°F
Inlet/Outlet Connections: 4" FLG
Electrical: 460V/3Ph/60Hz

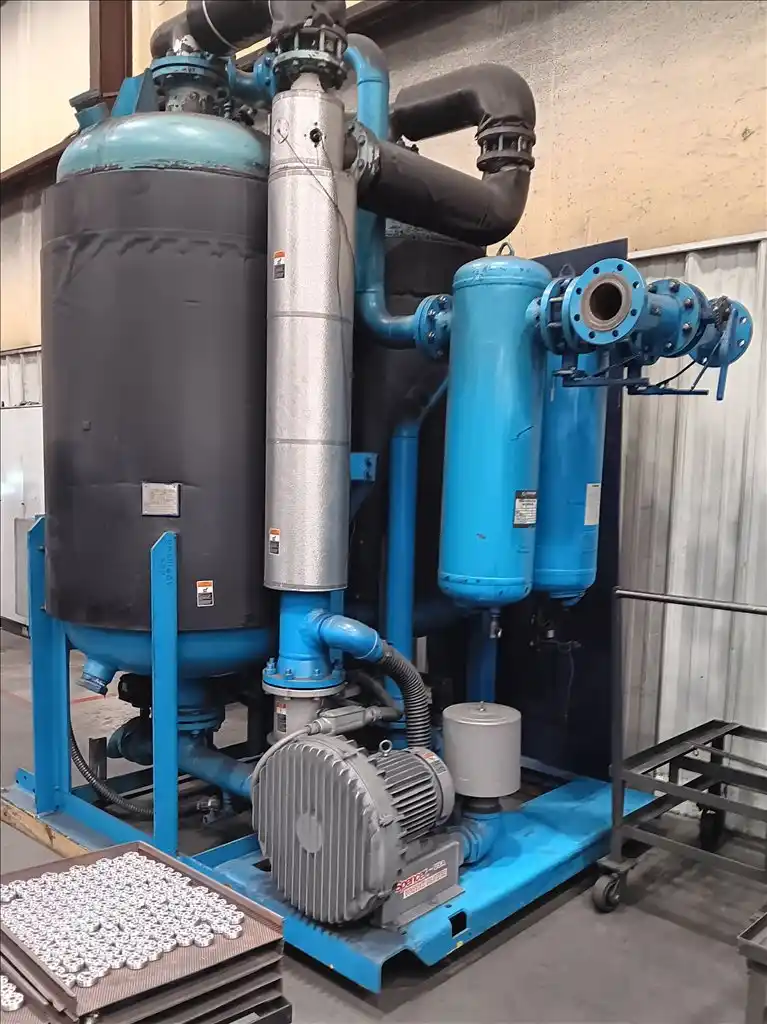

This Hankison HBP2200 blower purge regenerative desiccant air dryer is designed to deliver reliable ISO 8573.1 Class 2 performance with a consistent -40°F pressure dew point. Unlike heatless or externally heated dryers, this machine regenerates its desiccant beds with a dedicated blower and heater, eliminating costly compressed air loss and reducing energy consumption. The result is lower operating costs while maintaining full system capacity.
This unit features industrial-grade activated alumina desiccant, low-watt density heaters to extend media life, and a quiet high-efficiency blower system engineered for continuous duty. Its standard controls provide real-time tower status, heater monitoring, service reminders, and RS232 connectivity, while rugged NEMA 4 construction ensures long service life even in demanding plant environments.
For manufacturers seeking a dependable large-capacity dryer, this HBP2200 offers near 100% supply-side efficiency at 2200 SCFM, making it a proven solution for aerospace, automotive, electronics, food processing, and other industries where clean, dry compressed air is essential.
As Is, Where Is.
