Material Feed (Automatic)
Working Width: 12"
Material Thickness (Min - Max): 0.039" - 0.59"
Conveyor Speed: 0 - 6.5 FPM
Min. Part Size: 1" x 1"
Double Sided Deburring
Max. Part Size: 7.8" x 7.8"
Single Sided Deburring
Length of Part: 7.8"
G Grinding Unit

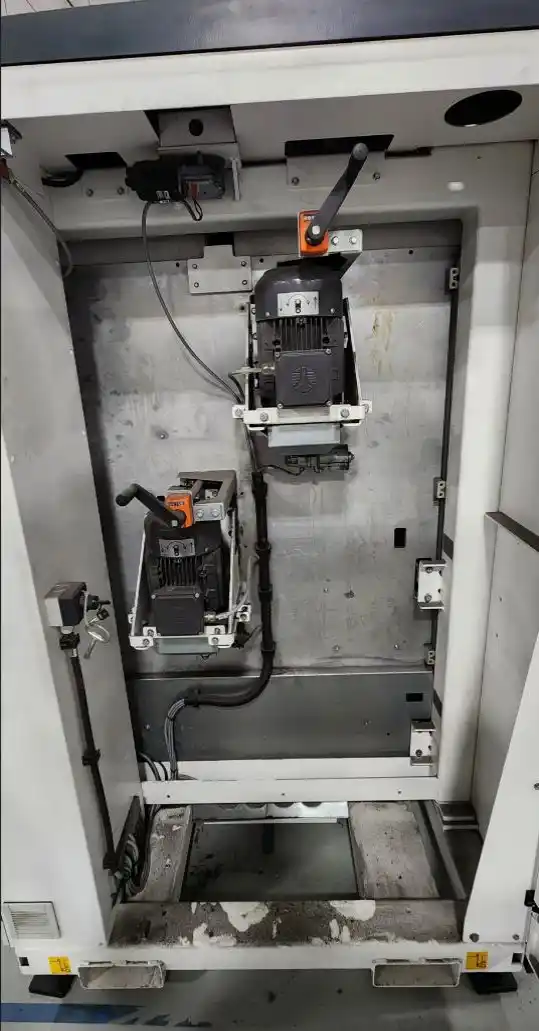

Main Drive Motor: 2x 0.75 kW
Current Load Motor: 2x 2.6 A
Grinding Belt
Width: 2.75"
Lenght: 39.37"
Length Tolerance: +/- 0.118"
E Edge Rounding Unit
Main Drive Motor: 2x 1.5kW
Current Load Motor: 2x 4.6 A
General Information & Dust Collector
Voltage: 4809 V / 60Hz
Rated Load Current: 20 A
Total Power Consumption: 15 kW
Insulation Class: IP 42
Noise Pressure Level: 78 dB
Total Weight: 3500 lbs
Dimensions (W/D/H): 52" x 91" x 75"
Hours: 1258
Equipped With

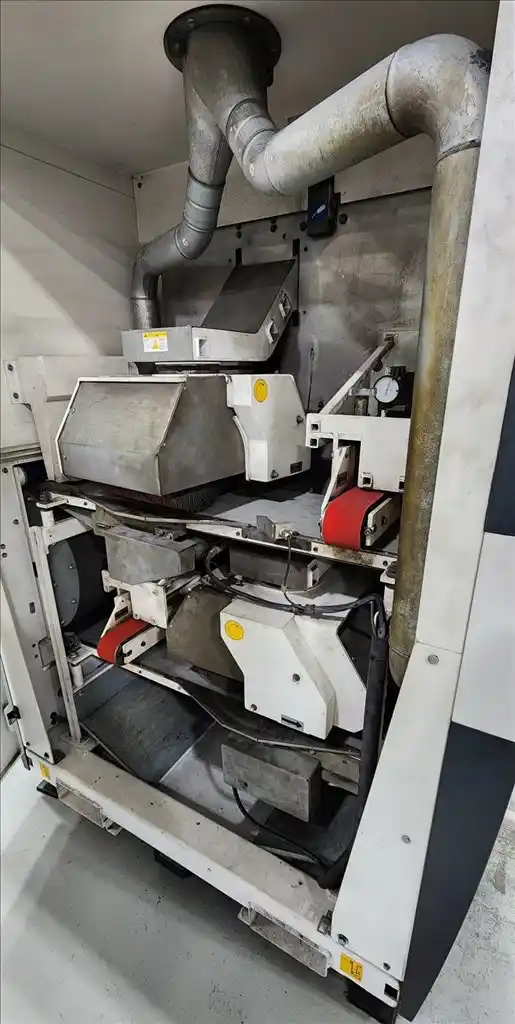

Two Grinding Belts – One on Top and One on Bottom
Two Rotating Abrasive Flap Wheels (E-Units) – One on Top and One on Bottom
Magnetic Table
Flip Station for Part in Length up to 7.8" (Double Sided Process)

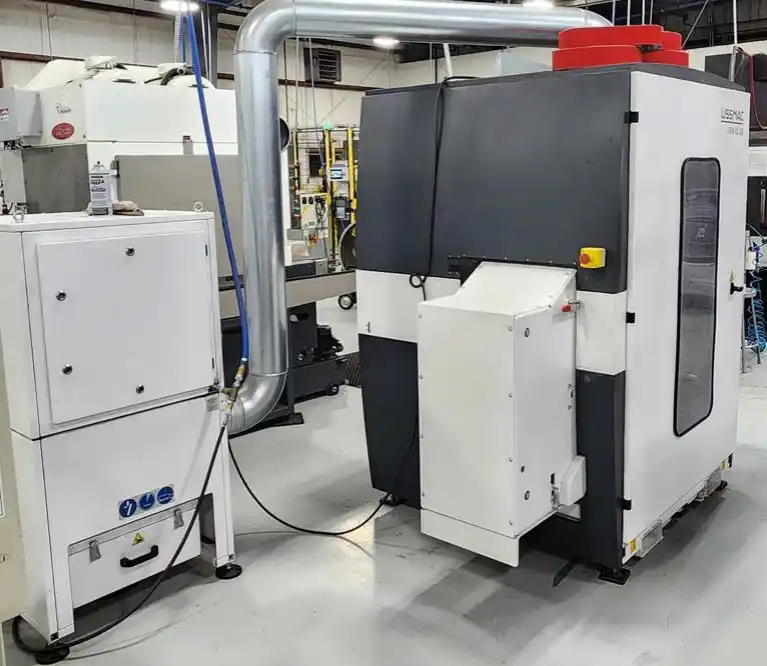

DDE 1500 Dust Collection System
As Taken From Service
