Haas Model: SL-30
Year: 2007
Videos Available Upon Request.

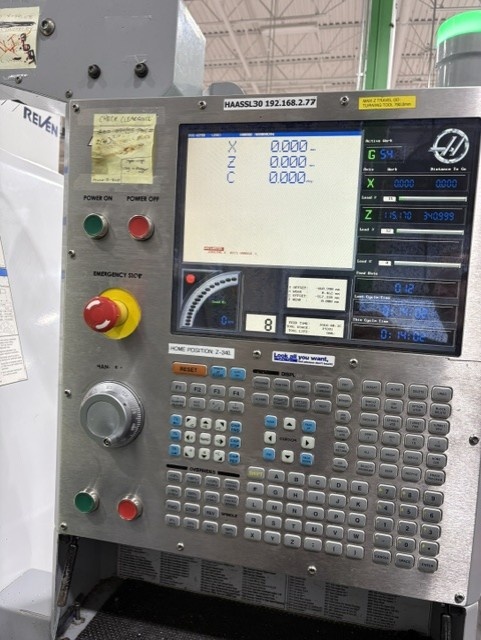

Control: Haas CNC
Configuration: Chucker, without tailstock

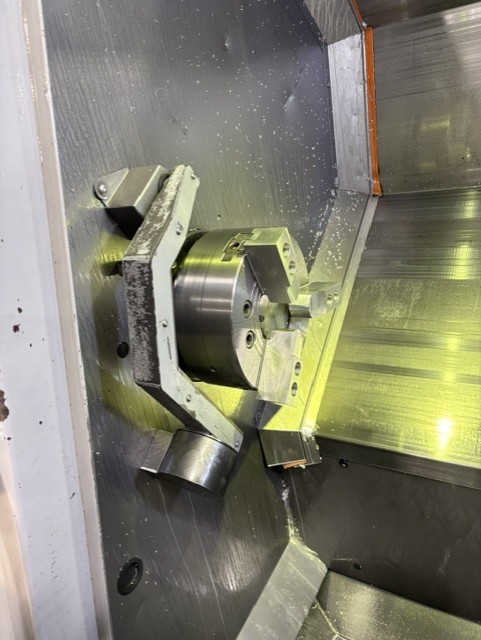

Chuck: Three-jaw

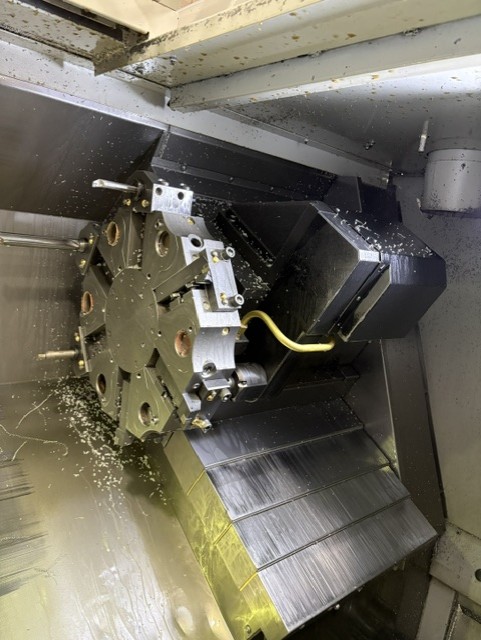

Turret: 12-station bolt-on

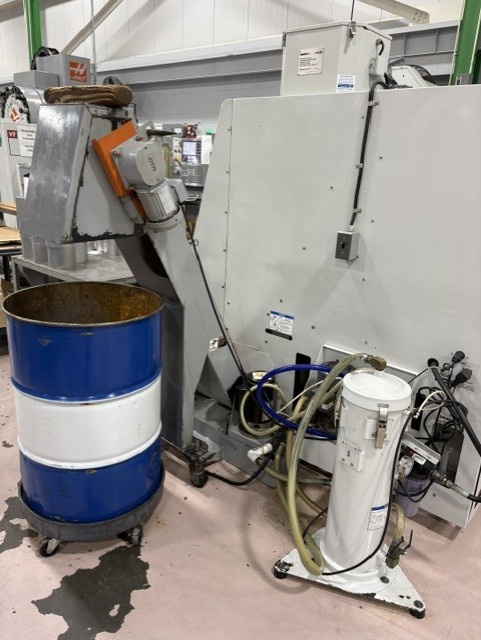

Chip Conveyor: Included
Electrical: 208/230 V, 3-phase, 50/60 Hz
Full-Load Current: 80 amps
Swing Over Bed: 30"
X-Axis Travel: 11.3"
Z-Axis Travel: 34"
X-Axis Rapid Traverse: 710 IPM
Z-Axis Rapid Traverse: 710 IPM
Standard Bar Capacity: 3"
Standard Spindle Bore: 3.50"
Standard Spindle Nose: A2-6
Standard Maximum Spindle Speed: 3,400 RPM
Disclaimer
Preliminary specifications are provided for general guidance only and may change without notice.
They are believed to be accurate but are not guaranteed. All specifications, dimensions, capacities,
weights, and performance figures should be independently verified by the buyer prior to purchase or use.
Bridgeline Machinery Corp. makes no representations or warranties, express or implied, regarding the completeness,
accuracy, or suitability of any machine specifications, and shall not be liable for any errors or omissions.
