2016 MULTICAM 3000 SERIES CNC ROUTER

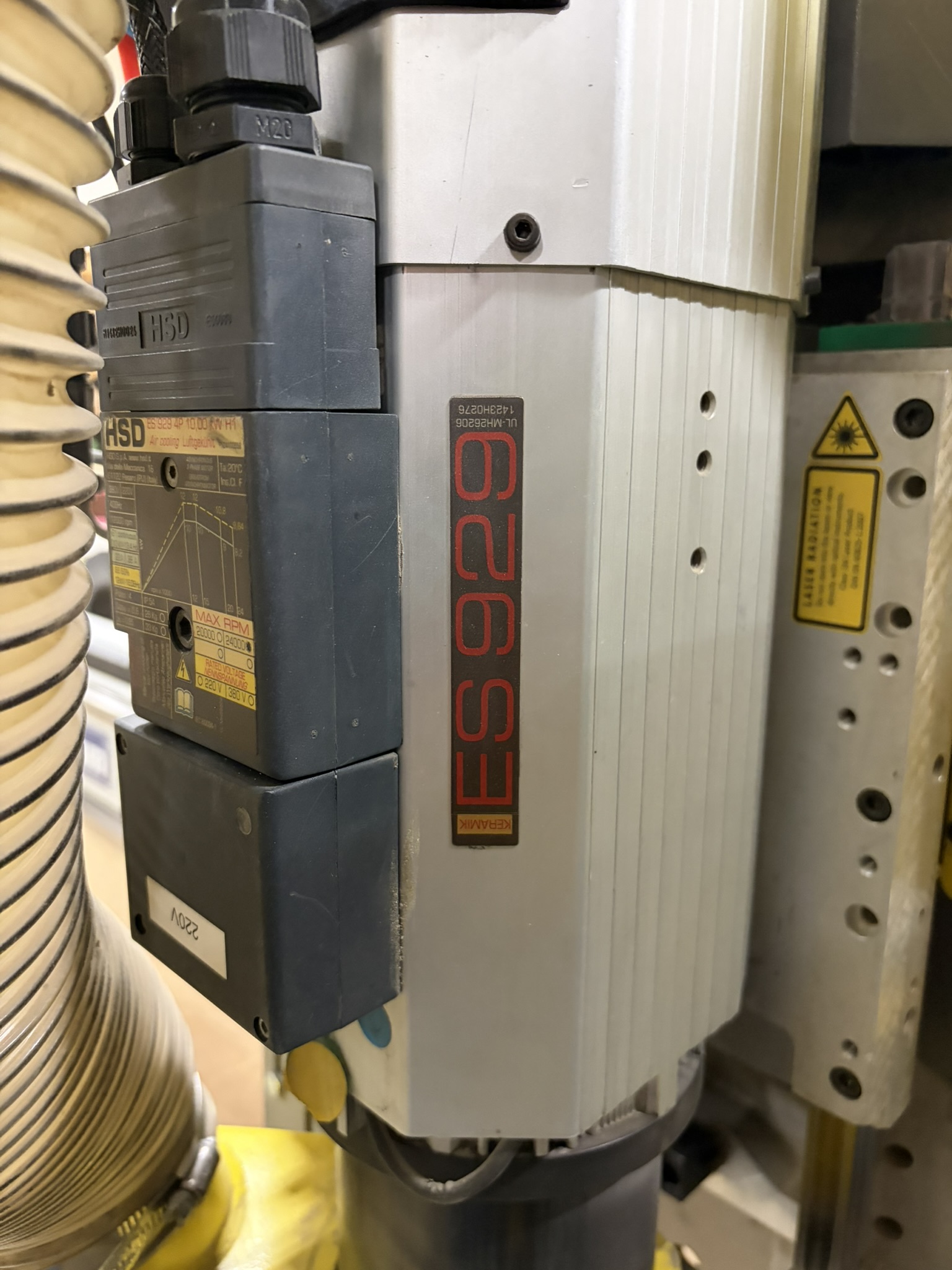

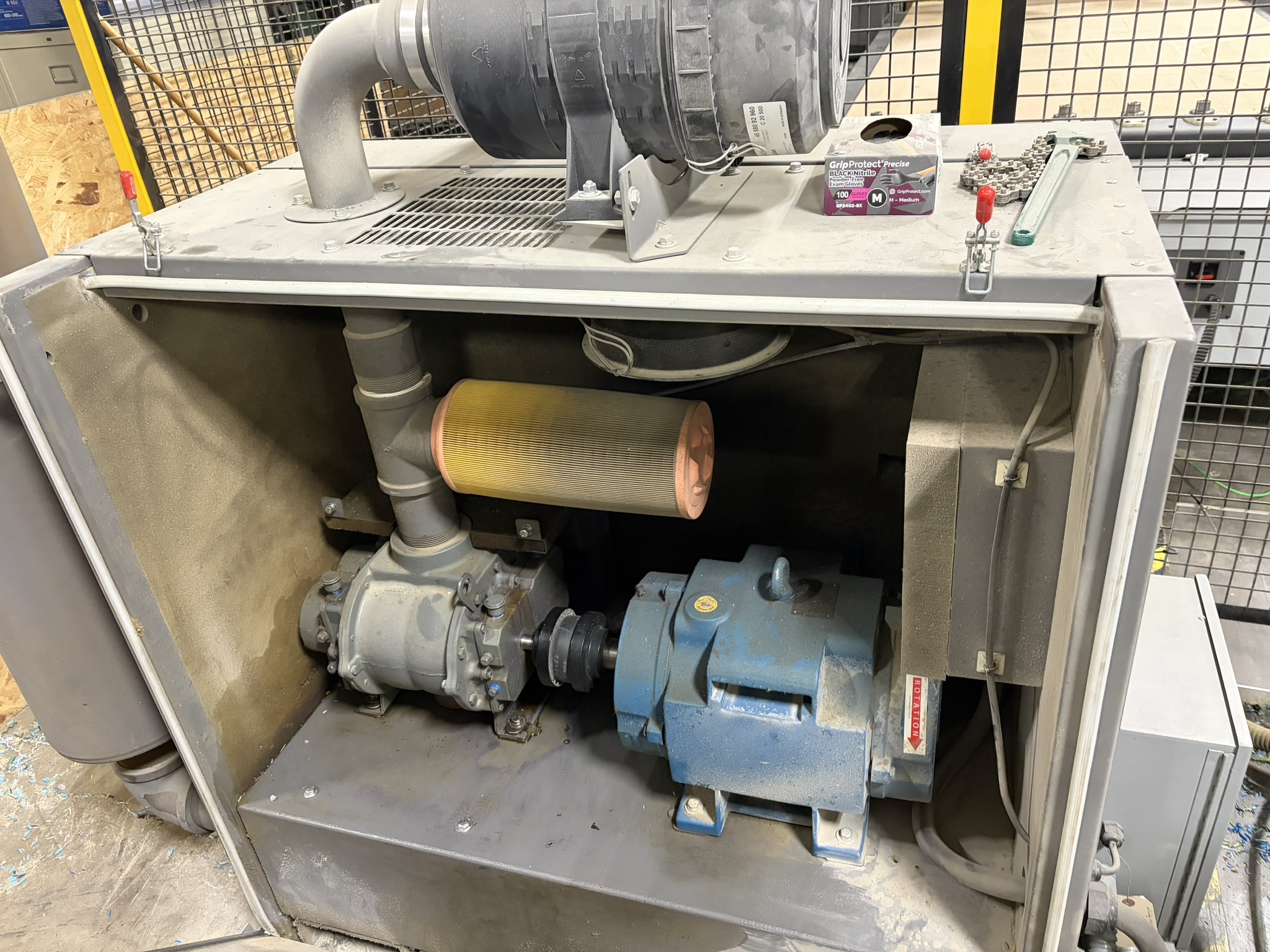

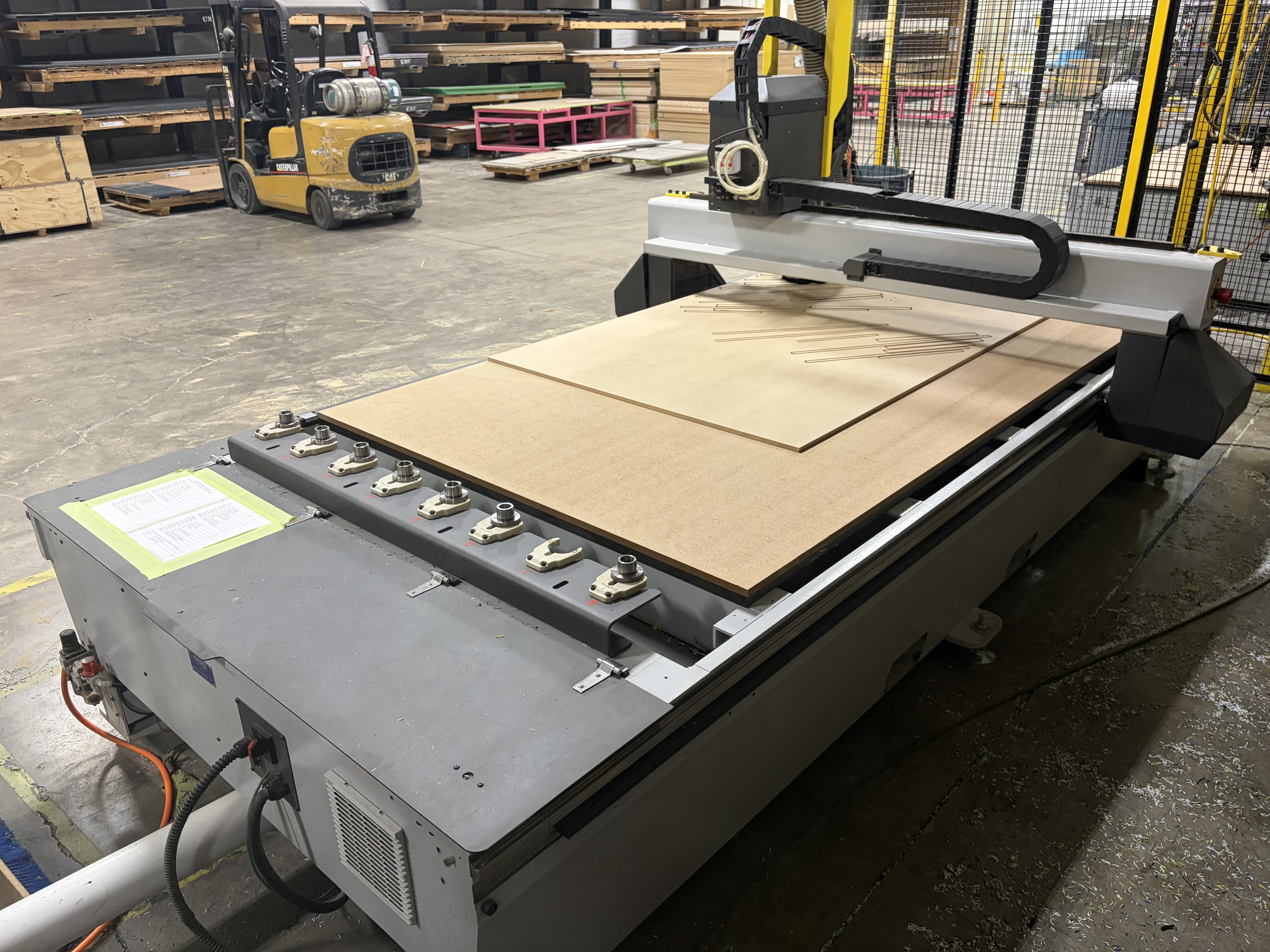

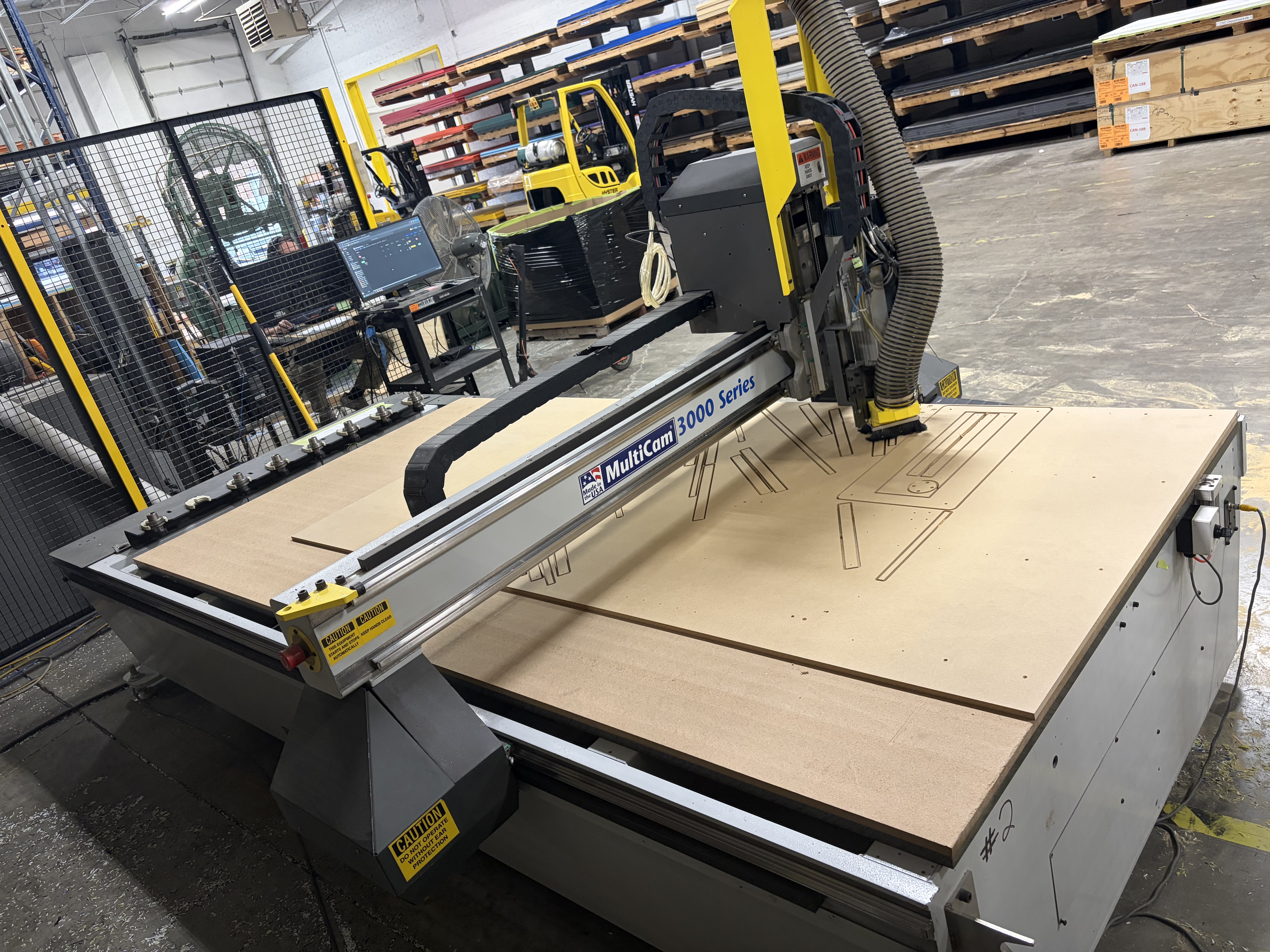

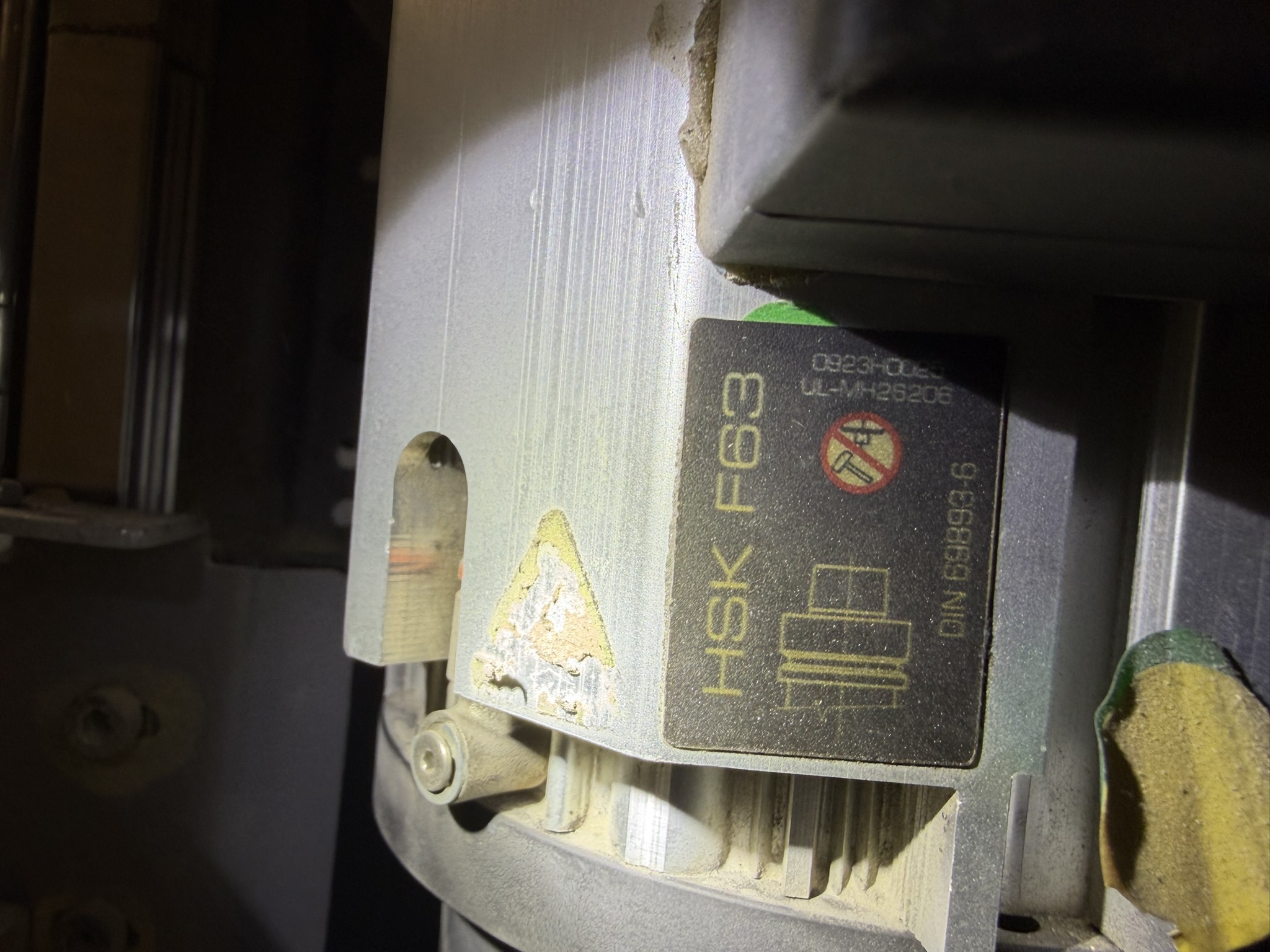

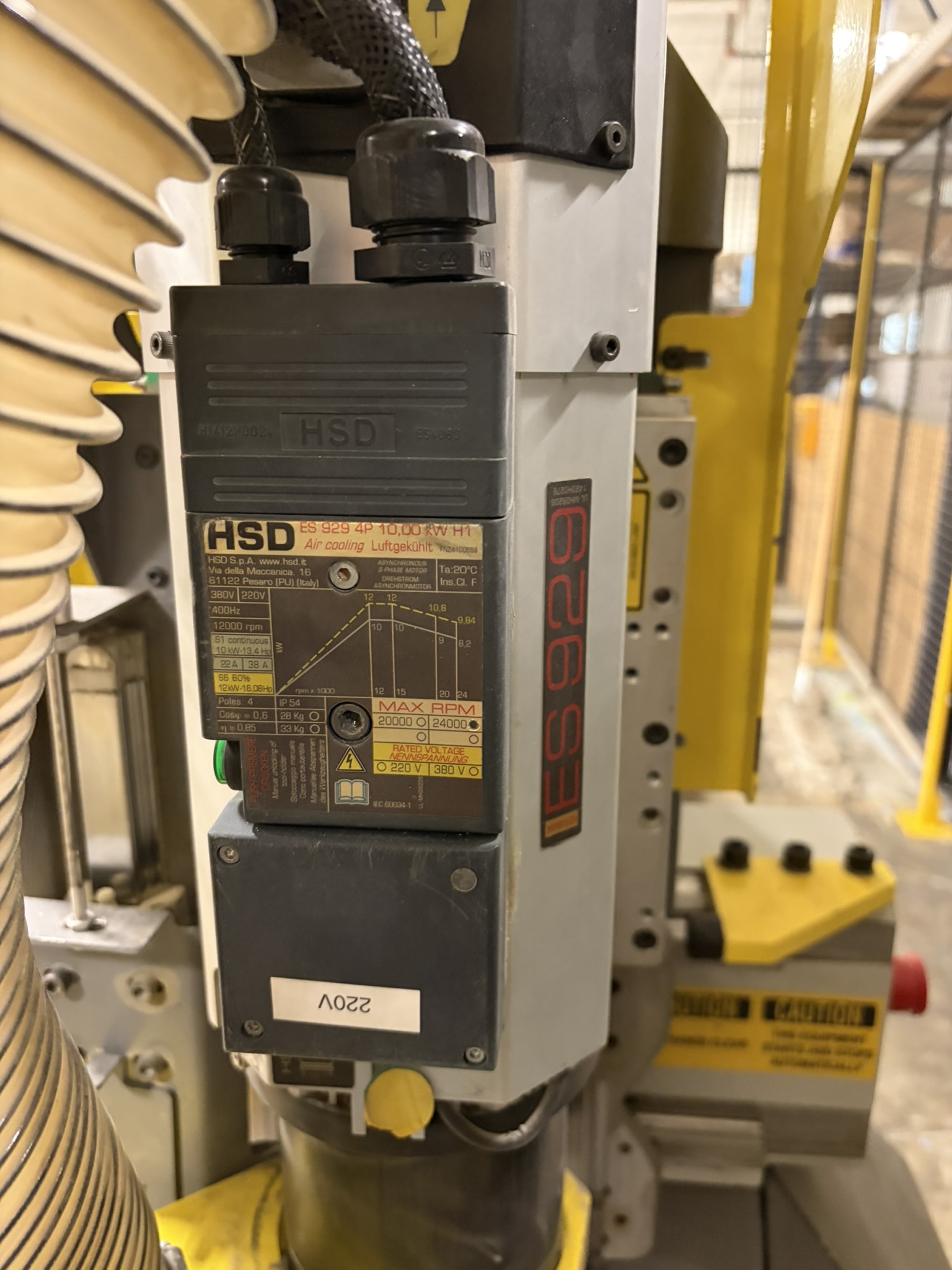

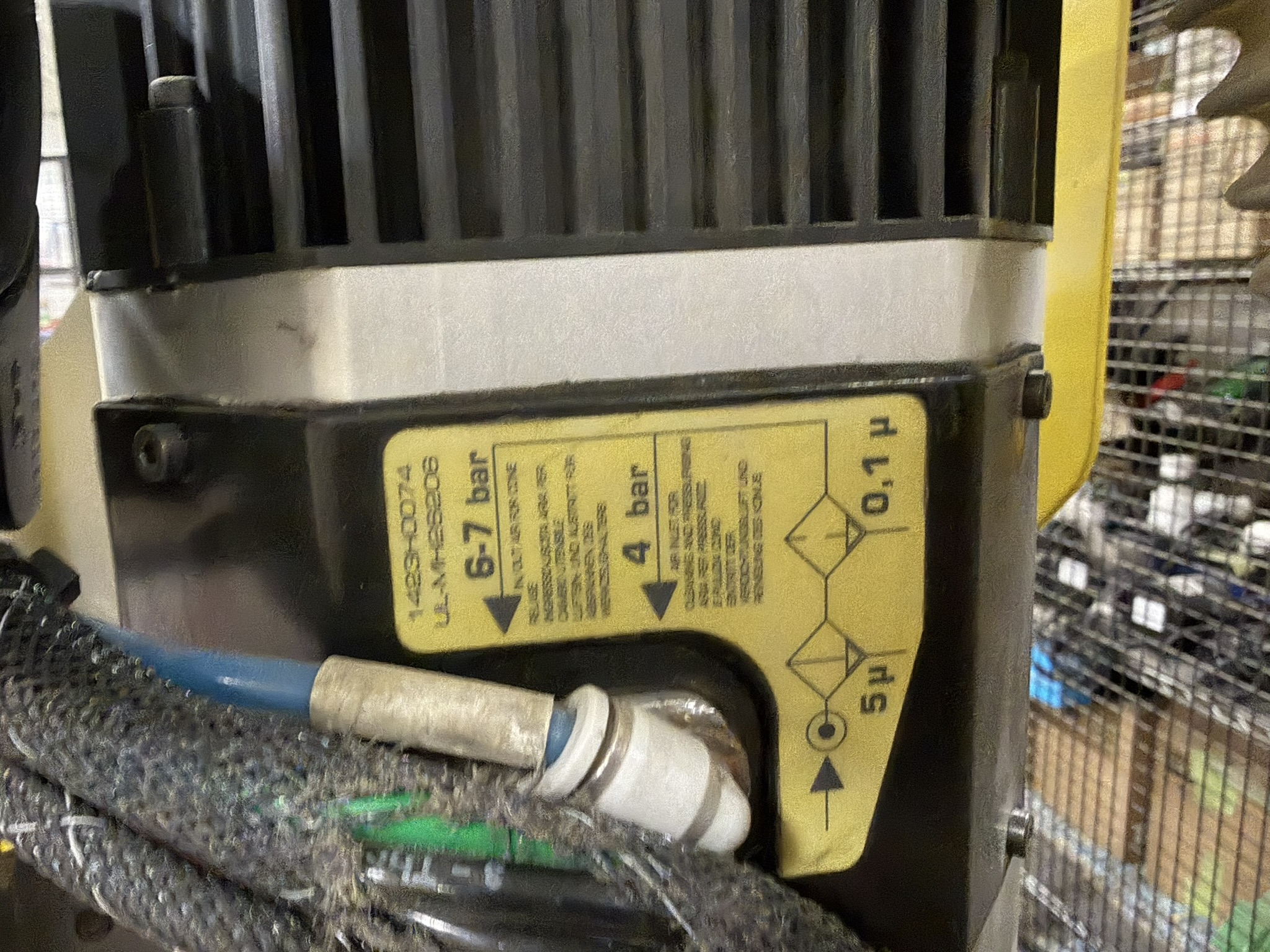

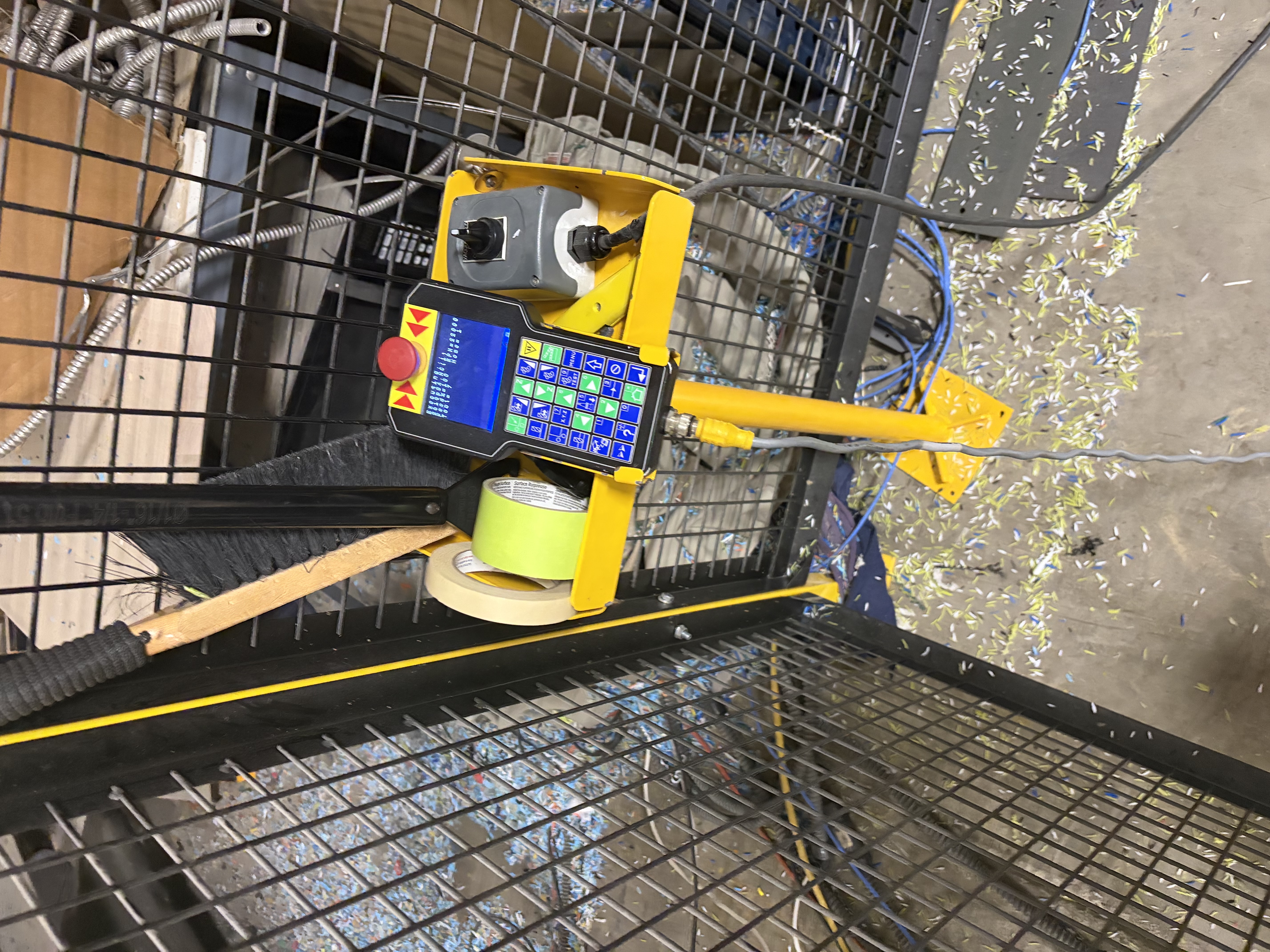

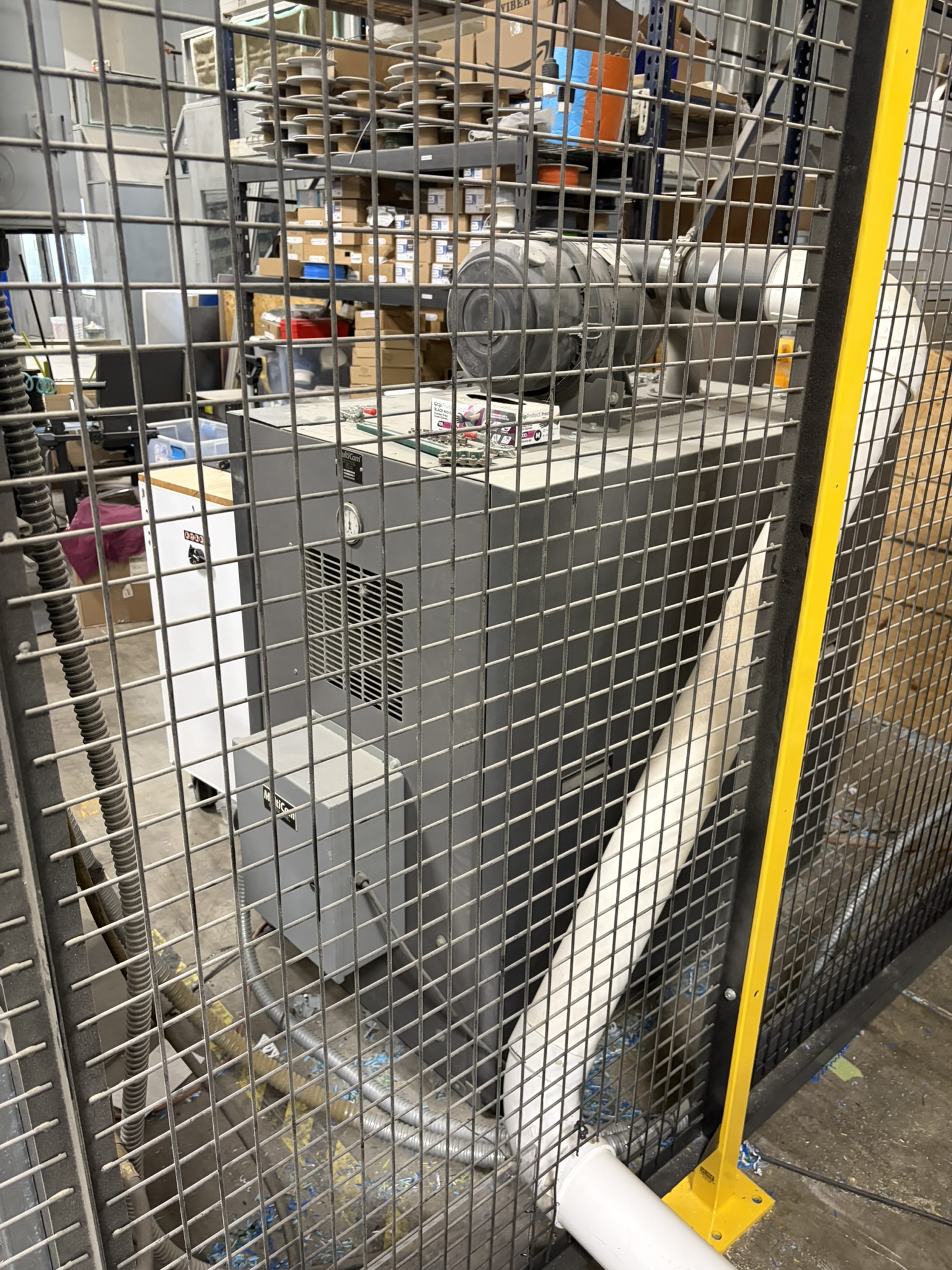

2016 MULTICAM 3000 SERIES CNC ROUTER Manufacturer MultiCam Series / Model 3000 Series / 3-204-R-PF Year 2016 Machine Type 3-Axis CNC Router CAPACITY & CONSTRUCTION Working Area Approx. 60" x 120" (5' x 10') Z-Axis Travel Approx. 12" Configuration Fixed table / moving gantry Table Phenolic vacuum hold-down table Motion Servo-driven gantry system SPINDLE - CONFIRMED FROM SUBJECT MACHINE NAMEPLATE Manufacturer HSD Model ES929 4P Rated Power 10.00 kW continuous, approximately 13.4 HP Cooling Air cooled Maximum Speed 24,000 RPM Electrical 3-phase, 220/380 V; 400 Hz Poles / Protection 4-pole / IP54 Tool Interface HSK F63 Approx. Spindle Weight 28 kg / 62 lb AUTOMATIC TOOL CHANGER Type Linear automatic tool changer Capacity 8 positions Tooling Interface HSK F63 VACUUM HOLD-DOWN SYSTEM System Oil-lubricated rotary vacuum pump package MultiCam Model SH-0200-25-08 MultiCam Serial 900003793 Bridgeline Machinery Corp. | Specifications believed accurate but subject to verification. Page 2 Configuration Separate electric motor, vacuum pump, inlet filtration and oil system housed in MultiCam enclosure Lubricant Reference Summit SBL-220 QT specified for approximately 32-90 F ambient conditions Service Label Oil change interval shown as every 90 days Pump HP / CFM Not confirmed from available photographs; motor/pump data plate required for exact rating CONTROL & EQUIPMENT Control MultiCam CNC control with handheld pendant Axes 3 Equipped With 8-position ATC; vacuum table; vacuum pump package; dust hood/extraction connection; machine guarding GENERAL Machine Electrical Previously documented approximately 220 V, 3-phase, 50.5 A; verify at machine Approx. Dimensions 183" L x 95" W x 77" H Approx. Weight 5,170 lb Verification Note: Spindle details above are confirmed from photographs of the subject machine. Vacuum package model and serial are confirmed from its MultiCam identification plate. Exact vacuum motor horsepower and pump capacity are intentionally left unconfirmed until the motor or pump manufacturer's data plate is documented.
